Self-Switching Double-Squeegee Window Cleaner

A squeegee only works properly in one direction: push it the other way and the blade chatters or leaves streaks. This cleaning head has a blade on each side and a pad in the middle. A small friction slider on the base feels which way you are moving and, through a rack and gears, tilts the blade frame so the leading blade lifts off and the trailing blade wipes the surface dry. Change direction, and the blades switch by themselves.

  • China utility model - in force in China
  • No filings outside China
  • Cleaning tools
  • Mechanical - gears, no motor needed
Request a Quote How it works →
Self-Switching Double-Squeegee Window Cleaner - patent drawing

🔄

Works both ways

Push or pull - the trailing blade always does the wiping, so there is no 'wrong' direction.

⚙️

Switches by itself

A friction slider drives a rack and gears that tilt the blade frame - no buttons, no motor.

🧽

Pad plus blades

The pad in the middle scrubs; the blade behind it removes the water and dirt it leaves.

🪟

Built for window cleaners

Described for magnetic window cleaners, and also for tables, walls, floors and boards.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

Window cleaners - handheld or the magnetic two-sided type - usually combine a cleaning pad with a squeegee strip. The patent describes two weak points: a fixed squeegee only wipes cleanly in one direction, and the pad leaves water and dirt that are not fully removed, especially toward the corners.

The solution

The patent puts two squeegee blades (2-1, 2-2) on opposite sides of the housing (1), with the cleaning pad between them, and makes the blades switch automatically:

  1. The blades sit on a blade frame (3) that is hinged in the housing on a support shaft (4) and can tilt by about 5-25°.
  2. A sliding block (5) carries a friction pad that sticks out through a hole (1015) in the base and touches the surface being cleaned.
  3. When the head moves, friction holds the slider back, so it moves backward relative to the housing.
  4. The slider’s rack (51) turns a second gear (8) on a shaft (9); a first gear (7) on the same shaft drives the rack on a sliding plate (6).
  5. The sliding plate presses on the blade frame and tilts it: the blade at the front lifts away from the surface, and the blade at the back presses down and wipes.
  6. Move the other way and the whole sequence reverses.
Self-Switching Double-Squeegee Window Cleaner - Patent drawing - side view while moving

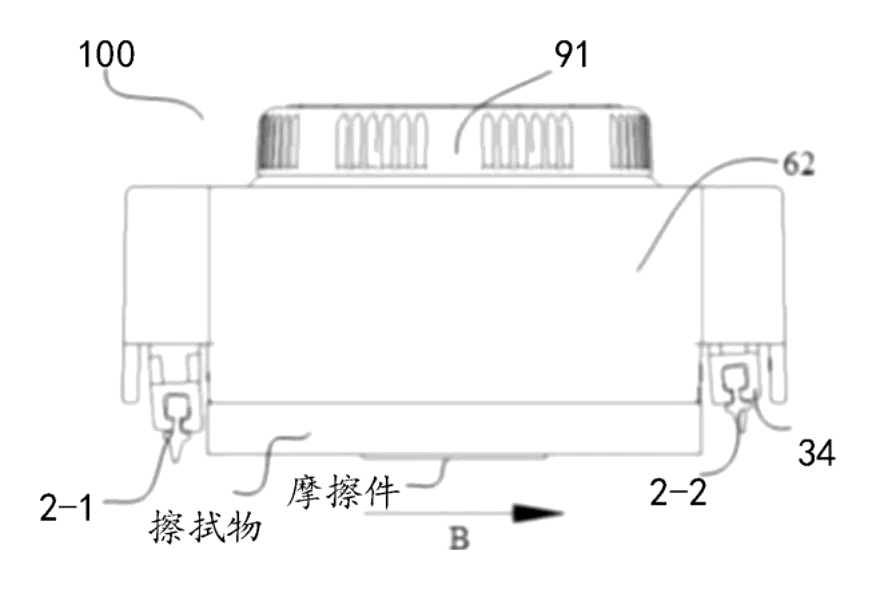

Patent figure 4 - side view while moving in direction B: blades 2-1 and 2-2 on either side of the pad and friction pad; top knob (91).

Who it is for

  • Window-cleaning tool brands, including magnetic window cleaner makers, looking for a streak-reducing upgrade.
  • Household cleaning brands with squeegees for glass, shower screens, tables and whiteboards.
  • Janitorial suppliers whose staff clean large glass areas.

How it works

The main parts

Self-Switching Double-Squeegee Window Cleaner - Patent drawing - inside the housing
Patent figure 10 - inside the housing (1): blade frame (3), sliding block (5) with rack (51), gears (7, 8) on the shaft (9) and the sliding plate (6).
No.PartWhat it does
1HousingBody of the cleaning head; its base carries the cleaning pad.
2-1, 2-2Squeegee bladesOne on each side; the trailing one wipes.
3Blade frameTwo mounting beams joined by cross beams; tilts 5-25°.
4Support shaftHinge between the frame and the housing.
5Sliding blockCarries a removable friction pad that touches the surface.
51Rack on the sliderDrives the second gear.
7, 8First and second gearsOn one shaft; pass the slider’s movement to the sliding plate.
9ShaftCarries both gears.
6Sliding plateMoves sideways and presses the blade frame to tilt it.
91KnobOn the top cover; in the magnetic version it winds a safety cord.

The claims also allow a motor to turn the gear shaft instead of the friction slider; the basic version is purely mechanical.

Cleaning a window

Self-Switching Double-Squeegee Window Cleaner - Patent drawing - the blade frame
Patent figure 11 - the blade frame (3): mounting beams (32-1, 32-2), cross beams (31-1, 31-2) and shaft holes (33).
  1. Wet the glass (or the pad) as usual.
  2. Move the head across the glass in direction A to B - the pad scrubs, the blade at the back wipes.
  3. Reverse direction - the slider is held back by friction, the gears turn, and the frame tilts the other way. The other blade now trails and wipes.
  4. Continue in overlapping strokes in both directions without lifting or turning the tool.

For magnetic window cleaners, the patent describes the head on the outside of the glass, guided by a magnetic inner part, with a safety cord wound on the top knob (91).

Applications

Magnetic window cleaners

Cleaning both sides of windows in high-rise apartments and offices, where turning the outer unit is impossible.

Handheld window and shower squeegees

A two-way squeegee for glass doors, mirrors and shower screens.

Tables, counters and whiteboards

The patent also names desktops, walls, floors and blackboards.

Car and boat glass

Windshields and windows washed by hand.

Commercial cleaning

Storefront glass and glass partitions cleaned in fast back-and-forth strokes.

Where it is less suitable

  • Very dirty or textured surfaces - heavy grime needs pre-scrubbing; textured glass does not wipe dry with any squeegee.
  • The cheapest squeegees - the gear mechanism adds parts and cost; it fits mid- and premium-priced tools.

Frequently asked questions

How do the blades switch?

A small friction pad on a sliding block touches the glass. When you move the head, friction holds the block back; its rack turns two gears that slide a plate, and the plate tilts the blade frame. The front blade lifts and the rear blade wipes. Reverse direction and it tilts the other way.

Does it need batteries?

No. The basic version is purely mechanical. The patent also allows a motor version, which we would only use for a powered product.

Is it a magnetic window cleaner?

The patent describes it mainly for magnetic window cleaners, but the same head works as a handheld or pole-mounted squeegee and on tables, walls and whiteboards.

Does it remove streaks completely?

The patent says the trailing blade removes the water and dirt left by the pad. Results depend on the blade material and the glass; we test on samples.

Can the blades and pads be replaced?

Yes. Replaceable blades and pads are recommended and can be sold as refills.

How much does the frame tilt?

The patent gives a range of 5-25°; the exact angle is set in design.

Can this design be made and sold in the US?

The patent was filed only in China, so it does not restrict the design in the US. It is still in force in China, where making or selling it would need the owner’s permission. Other window-cleaner designs may be patented - see Patent & Production - so we recommend a freedom-to-operate check before volume production.

Are you affiliated with the patent owner?

No. IP2M is an independent design and manufacturing service working from the public patent document.

Request a quote

Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN212630655U in the subject.

Helpful details to include:

  • Your company and sales channel (cleaning brand, Amazon, janitorial supply…)
  • Product type - magnetic window cleaner, handheld or pole squeegee
  • Size, blade and pad materials, refills
  • Colors, branding and packaging
  • Estimated quantity and target price
  • Timeline - when you would like samples and the first shipment

You can also reach us at (332) 203-9997.
