Patent Information & Production OptionsSelf-Switching Double-Squeegee Window Cleaner · Patent CN212630655U

Patent CN212630655U: bibliographic data, legal status, family, a plain-language reading of the claims, plus customization, US compliance points and how a manufacturing project runs.

At a glance

Patent numberCN212630655U (application CN202021370637)
TypeChina utility model (实用新型) - protects product shape and structure
Original titleScraping device with multiple scraping pieces (一种多刮擦件的刮擦装置)
Patent ownerXi’an Jiaying Enterprise Management Consulting Co., Ltd. (西安佳赢企业管理咨询有限公司)
InventorNot disclosed in the publication
Priority date2019-12-27 (Chinese application CN201922401638)
Filing date2020-07-13
Grant date2021-03-02
Status (China)In force - no termination recorded; a China utility model lasts at most 10 years from filing (to 2030-07-13)
Patent familyChinese filings only - no US, European, Japanese, PCT or other filings listed
Cited by2 later documents
SourceGoogle Patents (search for CN212630655U)

What the claims cover, in plain language

Claim 1 - a scraping device with a housing, a support movable inside it carrying several scraping pieces on two opposite sides, and a gear transmission. When the device moves over a surface, the transmission moves the support so that the scraping piece in front lifts away and the one behind presses on the surface and wipes.

Claims 2-5 - the transmission has a sliding block and a sliding plate linked by gears; the block moves backward relative to the direction of travel and makes the plate swing the support (claim 2); a friction element on the block contacts the surface (claim 3) through a hole in the housing (claim 4) and is removable (claim 5). Claims 6-8 - a shaft with a first gear meshing a rack on the sliding plate (claim 6), driven by a rack on the block and a second gear (claim 7), or by a motor controlled by a processing unit (claim 8). Claims 9-12 - pressing surfaces on the plate, and limiting features (holes and ribs) that limit and hold its travel. Claims 13-17 - the support is two parallel mounting beams and at least two cross beams, hinged in the housing by a shaft or hinge seat, with slots for the blades, and may be one molded part. Claim 18 - the support moves through 5-25° relative to the housing center.

This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.

What this means for US production

This patent was filed only in China. It is still in force in China, so making or selling this design in China would need the owner’s permission while it lasts (at most until 2030-07-13). It has no US or other foreign counterpart and does not restrict the design outside China.

Before production, keep in mind:

  • Other patents may exist. Window squeegees and magnetic window cleaners are made by many brands with US patents and design patents. Use your own styling and have a freedom-to-operate (FTO) search done by a US patent attorney before volume production.

Customization and manufacturing

What can be customized

AreaOptions
Product typeMagnetic two-sided window cleaner, handheld squeegee, pole-mounted head
SizeHead width and blade length - to be confirmed in design
BladesSilicone or rubber; replaceable blade strips
PadMicrofiber, sponge or scrub pad; replaceable
Magnet strengthFor magnetic versions, matched to the glass thickness range
HousingABS or PP, brand colors, soft-touch grip
PackagingRetail box with spare pads and blades

Things to plan for (US market)

  • Magnets - strong magnets need a pinch warning and a safety cord for the outer unit; keep them away from children.
  • Glass thickness - state the supported glass thickness range on the package for magnetic versions.
  • Labels - country of origin; check plastics and rubber against California Proposition 65.

How a project runs

  1. Inquiry - product type, size and quantity.
  2. Design - gear train, friction slider and blade frame for the chosen size.
  3. Prototype - samples for switching, streak and wear tests on glass.
  4. Pilot run - small batch to check molding and assembly.
  5. Production - volume production, packaging and shipping.

Quantities & timeline

The housing, frame, slider and gears are injection-molded parts, so the main cost is the mold set; blades and pads are standard consumables. Send us your product type, size, quantity and target price and we will reply with options.

Patent drawings

Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 1

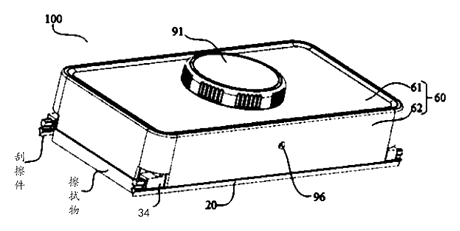

Fig. 1 - Overall view of the cleaning head with top cover and knob (91).
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 2

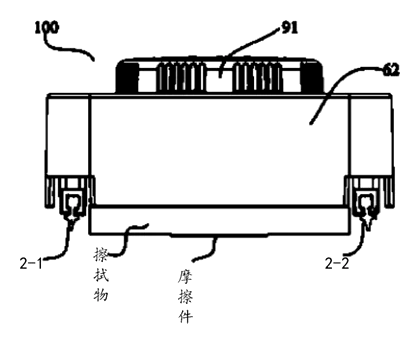

Fig. 2 - Side view: blades 2-1 and 2-2 on either side of the pad and friction pad.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 3

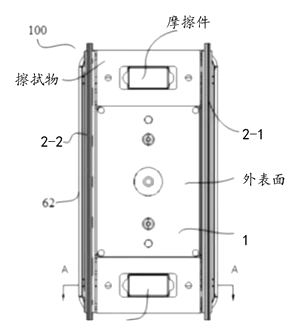

Fig. 3 - Underside: housing (1), friction pads and the blades (2-1, 2-2) along both sides.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 4

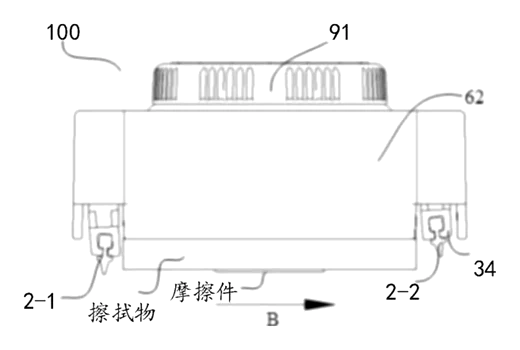

Fig. 4 - Side view while moving in direction B.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 5

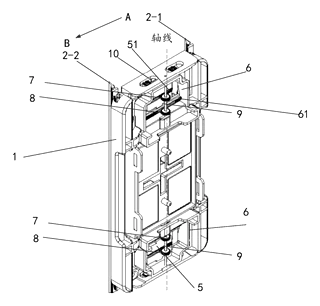

Fig. 5 - Inside the housing: 1 housing; 5 sliding block; 51 rack; 6 sliding plate; 7 first gear; 8 second gear; 9 shaft.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 6

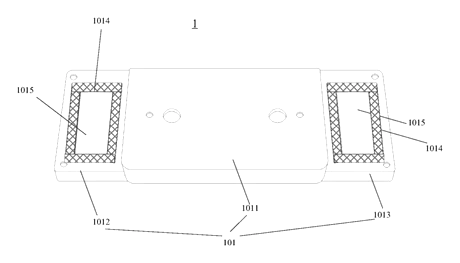

Fig. 6 - Outer surface of the housing base with the openings (1015) for the friction pads.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 7

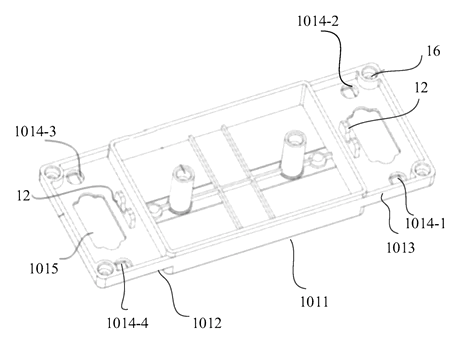

Fig. 7 - Housing base from inside.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 8
Fig. 8 - Sliding plate (6).
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 9

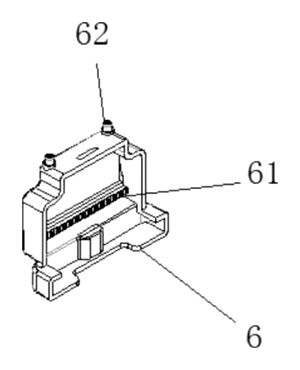

Fig. 9 - Sliding plate (6) with its rack.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 10

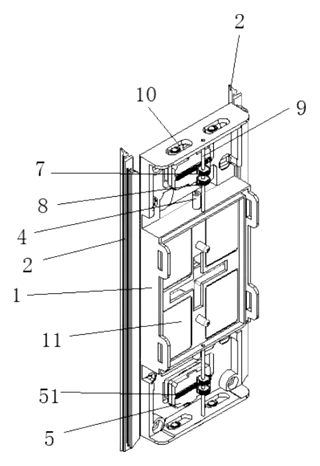

Fig. 10 - Housing with blade frame and gear train: 1 housing; 2 blade; 3 blade frame; 4 support shaft; 5 sliding block; 7, 8 gears; 9 shaft.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 11

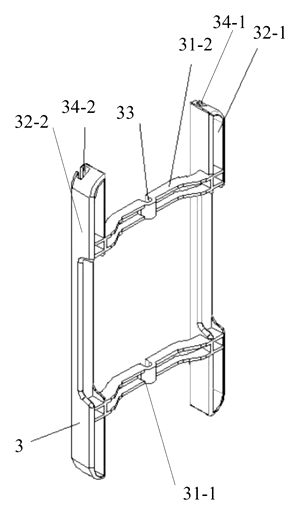

Fig. 11 - Blade frame (3): 31-1, 31-2 cross beams; 32-1, 32-2 mounting beams; 33 shaft holes.
Self-Switching Double-Squeegee Window Cleaner - Patent Fig. 12

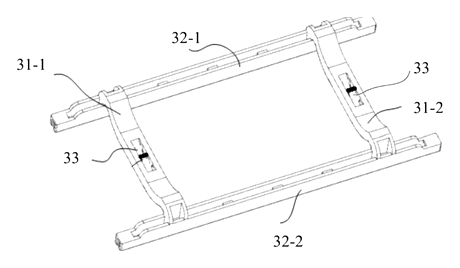

Fig. 12 - Blade frame seen from another angle.

Drawings reproduced from the public patent document for reference.
