Patent Information & Production OptionsRigid Shell Container with Removable Silicone Liner · Patent CN212638395U

Patent CN212638395U: bibliographic data, legal status, family, a plain-language reading of the claims, plus customization, US compliance points and how a manufacturing project runs.

At a glance

Patent numberCN212638395U (application CN202020149840)
TypeChina utility model (实用新型) - protects product shape and structure
Original titleContainer (容器)
Patent ownerSa Zhirong (萨支容), individual
InventorSa Zhirong
Filing date2020-01-23
Grant date2021-03-02
Status (China)Lapsed - terminated for non-payment of annual fees (recorded 2026-01-23)
Patent familyChinese filings only - no US, European, Japanese, PCT or other filings listed
Cited by8 later documents
SourceGoogle Patents (search for CN212638395U)

What the claims cover, in plain language

Claim 1 - a container with a shell that has a cavity and a top opening, and a liner of flexible material held removably in the shell; the liner has its own top opening and a liquid-tight cavity.

Claims 2-3 - shell and liner each have a bottom and side wall; the top of the liner side wall is detachably joined to the shell side wall; there is a gap between the walls over at least part of them, and their contours can differ. Claims 4-5 - the liner is silicone rubber; the shell is at least partly transparent. Claims 6-8 - the liner bottom rests on the shell bottom; studs on the liner fit holes in the shell base, shaped as characters or patterns. Claims 9-10 - a mounting ledge in the shell and a flange on the liner top, with a bent edge in a groove. Claims 11-13 - a press ring fixed to the shell top that presses the liner top. Claims 14-20 - the same container with a detachable lid that seals the liner top when closed, and further details.

This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.

What this means for US production

This patent was filed only in China, and it lapsed for non-payment of annual fees (recorded in January 2026). It no longer restricts anyone - in China or elsewhere.

Before production, keep in mind:

  • Other patents may exist. Drinkware, food storage and collapsible containers are crowded categories with many US utility and design patents. Use your own shapes and styling and have a freedom-to-operate (FTO) search done by a US patent attorney before volume production.

Customization and manufacturing

What can be customized

AreaOptions
ProductCup, tumbler, food box, kids’ tableware, pet bowl, collapsible versions
ShellTritan, PP or other food-safe plastics; clear or colored
LinerFood-grade or platinum-cured silicone; colors; divided liners
LidPress ring, clip-on lid, sip lid
Base logoLetters, logo or pattern molded through the base
PackagingRetail box, gift sets with spare liners

Things to plan for (US market)

  • Food contact - shell, liner and lid materials must meet FDA food-contact rules; silicone grade and post-curing matter.
  • Children’s tableware - products for children 12 and under need CPSIA testing and a Children’s Product Certificate.
  • Dishwasher and microwave claims - only claim what is tested.

How a project runs

  1. Inquiry - product type, size, materials and quantity.
  2. Design - shell, liner, seal and lid details.
  3. Prototype - samples for leak, fit and wash tests.
  4. Pilot run - small batch to check molding of shell and silicone.
  5. Production - volume production, packaging and shipping.

Quantities & timeline

The shell and lid need injection molds; the silicone liner needs a compression or LSR mold. Send us your product type, size, quantity and target price and we will reply with options.

Patent drawings

Rigid Shell Container with Removable Silicone Liner - Patent Fig. 1

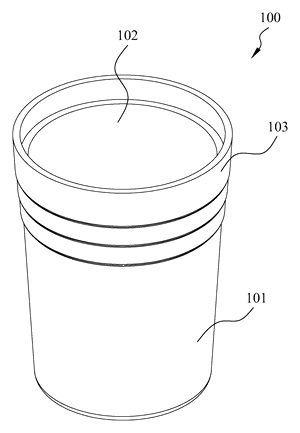

Fig. 1 - Cup 100, assembled: 101 shell; 102 liner; 103 press ring.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 2

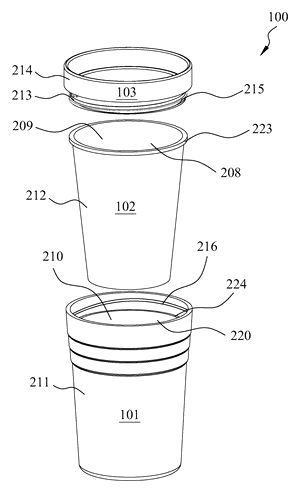

Fig. 2 - Cup 100, exploded.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 3

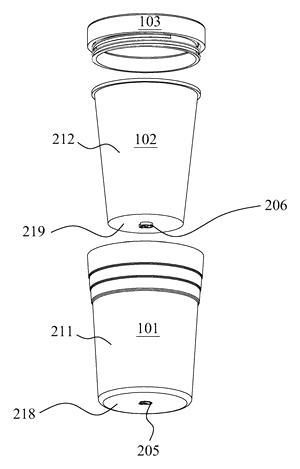

Fig. 3 - Cup 100, exploded from below: base studs and holes.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 4

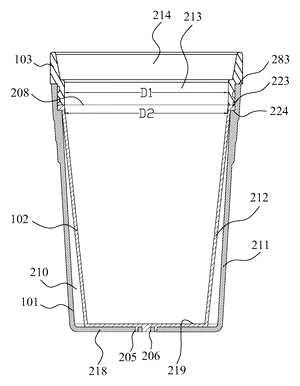

Fig. 4 - Cup 100, section.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 5

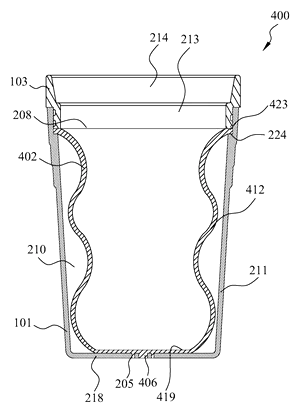

Fig. 5 - Cup 400 with a wavy liner, section.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 6

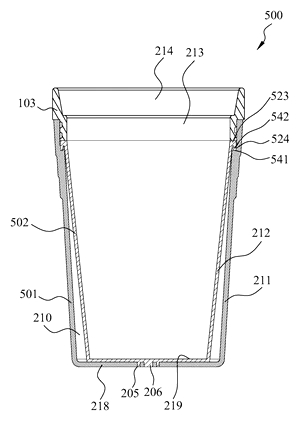

Fig. 6 - Cup 500, section.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 7

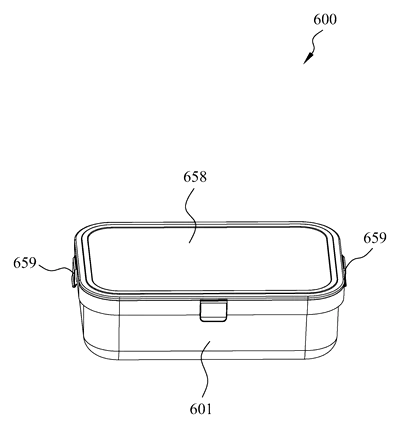

Fig. 7 - Food box 600, closed: 601 shell; 658 lid; 659 clips.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 8

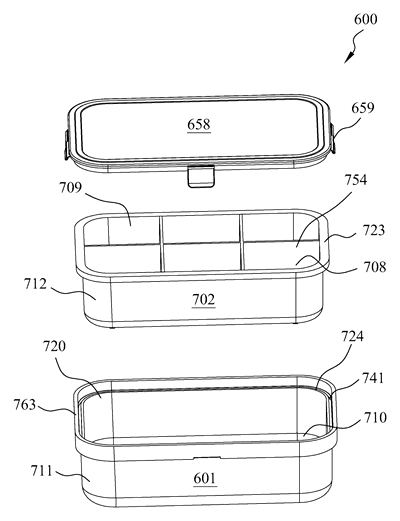

Fig. 8 - Food box 600, exploded: 702 divided liner.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 9

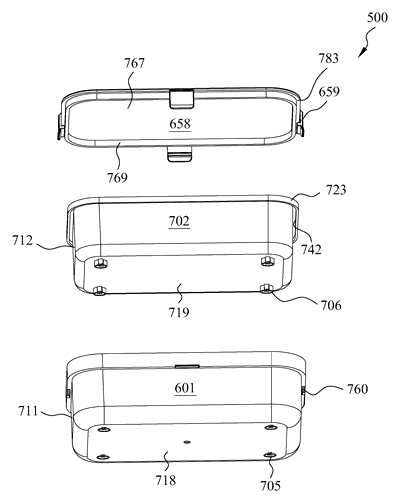

Fig. 9 - Food box, exploded from below.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 10

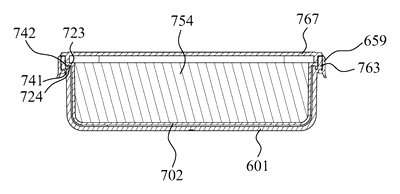

Fig. 10 - Food box, section.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 11

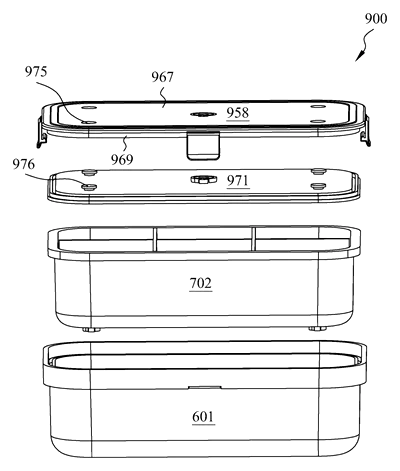

Fig. 11 - Food box 900, exploded.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 12

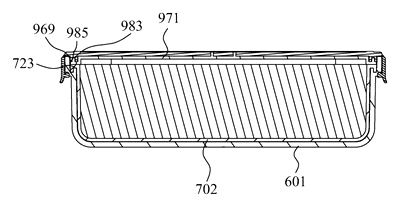

Fig. 12 - Food box 900, section.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 13
Fig. 13 - Collapsible cup 1000: 1025-1027 shell sections; 1004 lid.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 14

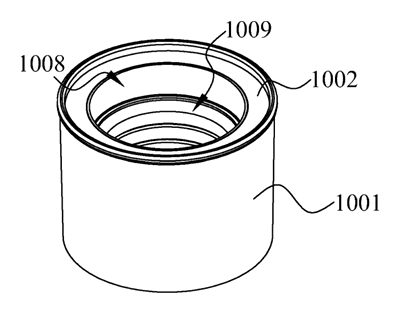

Fig. 14 - Collapsible cup 1000, collapsed.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 15

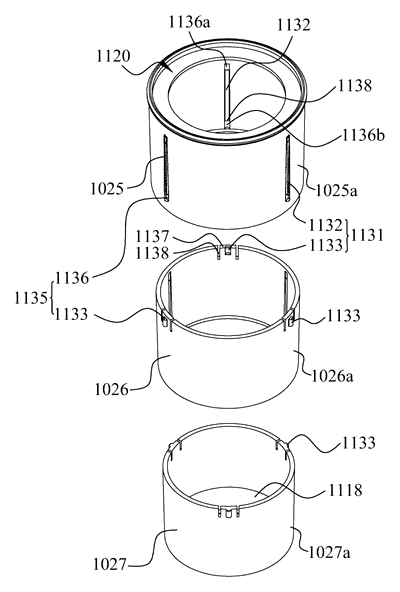

Fig. 15 - Collapsible cup 1000, shell sections exploded.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 16

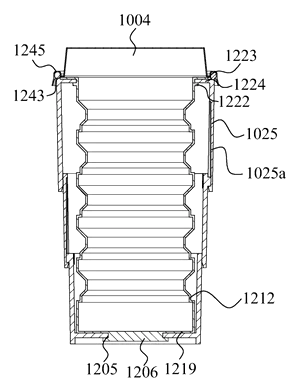

Fig. 16 - Collapsible cup 1000, section extended.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 17

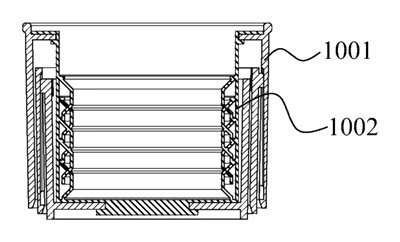

Fig. 17 - Collapsible cup 1000, section collapsed.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 18

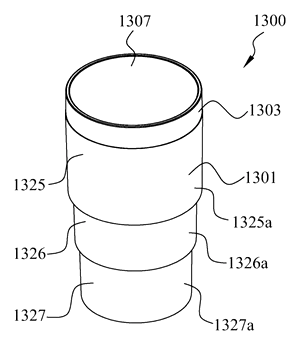

Fig. 18 - Collapsible cup 1300.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 19

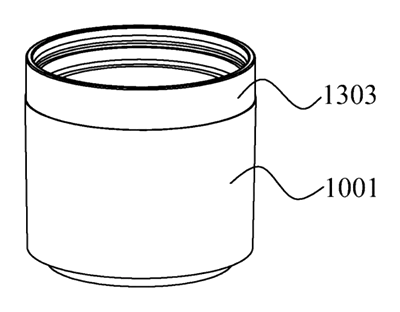

Fig. 19 - Collapsible cup 1300, collapsed.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 20

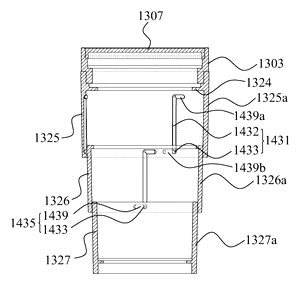

Fig. 20 - Collapsible cup 1300, section.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 21

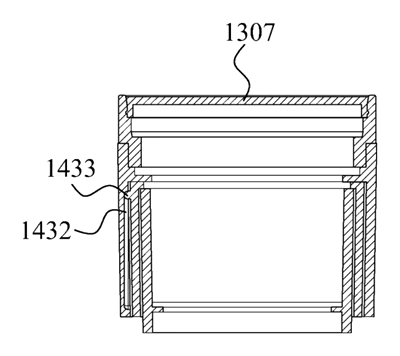

Fig. 21 - Collapsible cup 1300, section collapsed.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 22

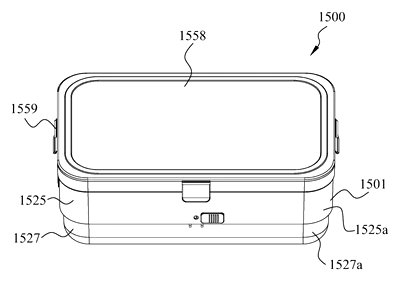

Fig. 22 - Collapsible food box 1500.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 23

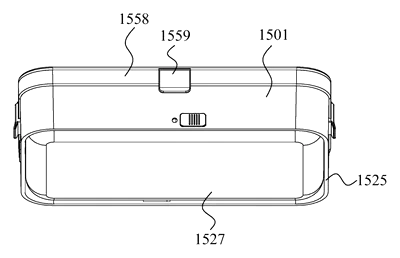

Fig. 23 - Collapsible food box 1500, collapsed.
Rigid Shell Container with Removable Silicone Liner - Patent Fig. 24

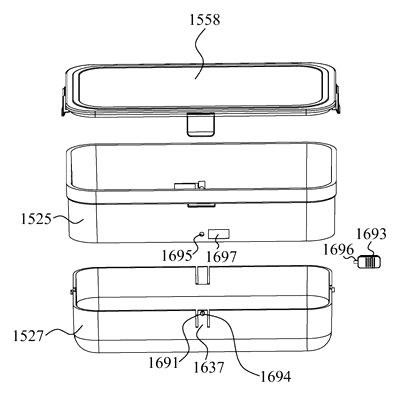

Fig. 24 - Collapsible food box 1500, exploded.
