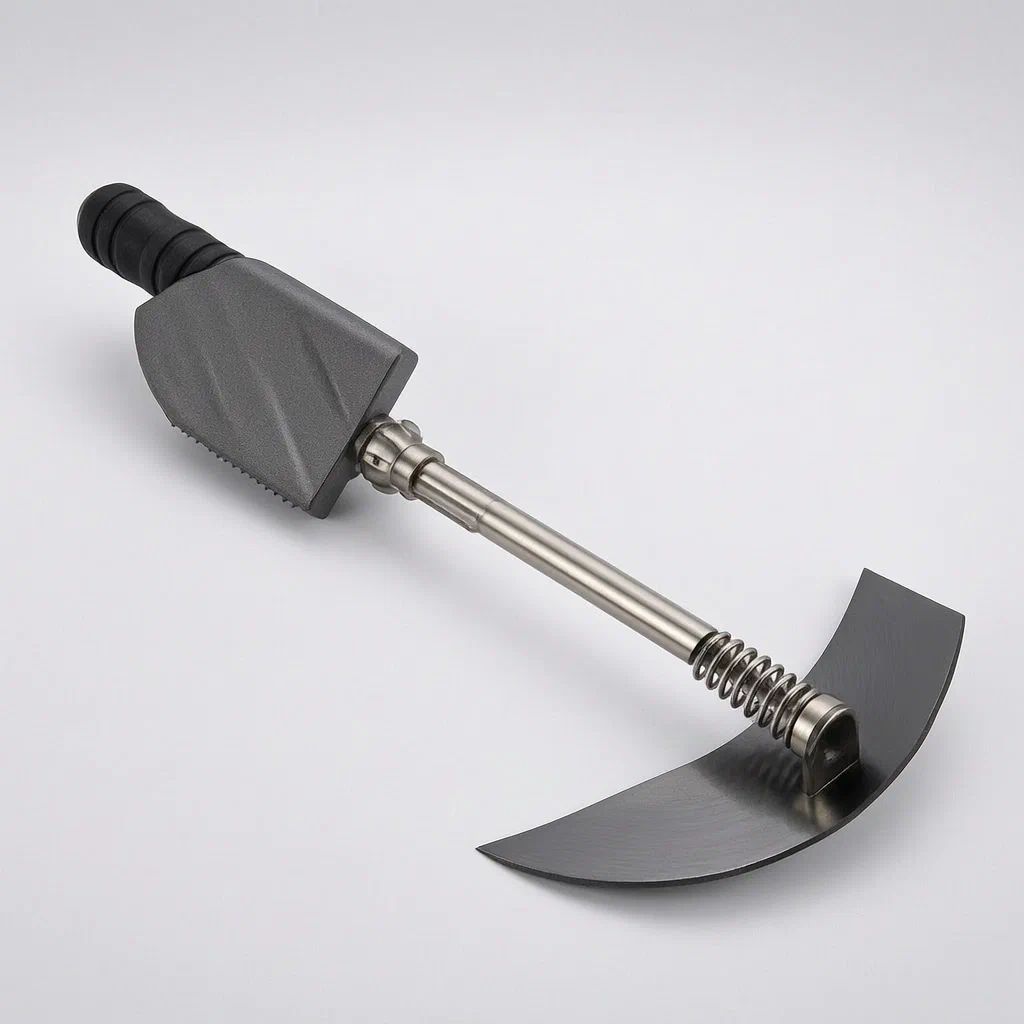

Garden Shovel for Garden Engineering with Foldable Blade and Scraper

The problem

In garden engineering and landscaping, workers frequently switch between tools: one for digging, another for pruning small branches, and a third for cleaning mud off the spade. Carrying multiple tools slows down workflow and adds weight to the kit. Additionally, traditional fixed-shovel designs are bulky to store and transport, especially when working in tight spaces or climbing trees where a long, rigid tool is inconvenient. Sticky soil accumulation on the shovel face also reduces efficiency, requiring frequent manual wiping or tapping.

The solution

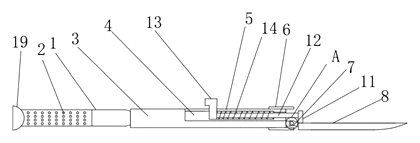

1. Modular Handle Assembly: The shovel consists of a main handle (1) and a support rod (3) connected by external and internal threads. This allows the tool to be unscrewed into two manageable lengths for transport.

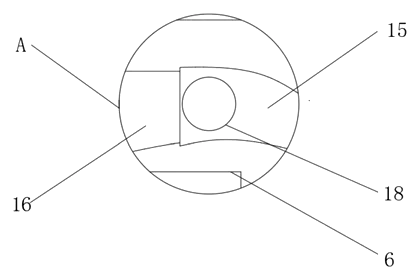

2. Folding Head Mechanism: The shovel body (8) is attached to a folding piece (7) via a half-wrapped iron sheet (15) and a connecting shaft (17). This hinge allows the head to pivot parallel to the handle when not in use.
3. Locking Sleeve: A threaded sleeve (6) moves along the support rod to lock the folding piece in an open position, ensuring rigidity during digging.
4. Dual-Edge Cutting: The shovel body features a standard blade (9) on one side and a V-shaped sword/cutter (10) on the opposite side, enabling simultaneous soil penetration and branch severing.

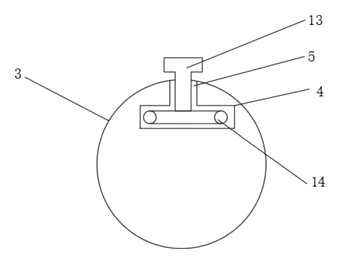

5. Active Scraping System: Inside the support rod, a sliding groove (5) houses a slide bar (12) topped with a push handle (13). A spring (14) returns the bar. At the bottom of the shovel body, a scraper blade (11) is attached to this slide bar. Pushing the handle extends the scraper across the shovel face to wipe off dirt; releasing it retracts the scraper.

Who it is for

• Landscaping Contractors: Teams needing a single tool for digging holes and clearing small root systems or branches without switching implements.
• Arborists and Tree Workers: Professionals who require a compact, foldable shovel that can be carried up ladders or stored easily in vehicles.
• Municipal Maintenance Crews: Public works departments managing park grounds where efficient soil handling and debris removal are key.
• Home Gardeners: Enthusiasts looking for a multi-functional tool that reduces clutter in the garage and handles tough clay soils better than standard spades.

How it works

The main parts

Operating Steps

1. Assembly: Screw the support rod (3) onto the handle (1). Extend the folding piece (7) outward until it aligns with the support rod’s axis.
2. Locking: Rotate the threaded sleeve (6) up the support rod until it covers the joint of the folding piece, preventing accidental closure during use.
3. Digging & Cutting: Drive the shovel into the soil. If encountering roots or small branches, use the V-shaped cutter (10) or side blade (9) to sever them while prying.
4. Scraping: After pulling out the shovel, if soil sticks to the face, press the push handle (13). The slide bar (12) moves downward, dragging the scraper blade (11) across the shovel body to clear debris. Release the handle, and the spring (14) resets the scraper.
5. Storage: Unscrew the threaded sleeve (6), fold the shovel body (8) back against the support rod (3), and unscrew the handle from the support rod for compact packing.

Applications

Landscaping Bed Preparation

Workers dig planting holes and trench lines. The integrated V-cutter allows them to slice through existing grass roots or small irrigation lines without stopping to use shears, speeding up bed renewal projects.

Municipal Park Maintenance

Crews maintain public green spaces. The foldable nature of the shovel makes it easy to load onto service vans. The scraper feature helps keep the tool clean after working in muddy areas near playgrounds or walking paths, reducing cross-contamination.

Arborist Work

Tree specialists often work at heights or in confined canopy areas. The ability to unscrew the handle and fold the head creates a short, lightweight package that can be stowed in a harness bag or climbed with, unlike rigid long-handled spades.

Clay Soil Digging

In heavy clay regions, soil tends to stick to metal surfaces. The spring-loaded scraper provides immediate cleaning capability, allowing the worker to continue digging efficiently without wiping the blade by hand or striking it against the ground.

Home Garden Projects

DIY enthusiasts creating raised beds or moving mulch benefit from the dual-functionality. They can dig, cut through old root balls, and clean the tool all with one implement, simplifying their shopping list and storage needs.

Where it is less suitable

• Heavy Rocky Terrain: The thin steel construction described may bend under extreme impact against large rocks; specialized rock bars are preferred there.
• High-Volume Commercial Farming: For plowing acres of land, mechanized equipment or simple, robust round-point shovels are more durable and cost-effective per unit.
• Precision Horticulture: Delicate flower beds may require smaller trowels; the broad shovel body might disturb too much surrounding soil.
