Baby Stroller with a Movably-Mounted Seat and Four-Bar Linkage Frame

The problem

Many compact folding strollers use simple pivot joints for the seat attachment. These single-point connections can become weak spots, concentrating stress when the child moves or when the stroller is lifted. Additionally, traditional folding mechanisms may not provide sufficient stability if the frame geometry shifts under load. Manufacturers need a way to attach seats securely while maintaining a lightweight, easy-to-fold frame structure that distributes mechanical stress more evenly across its components.

The solution

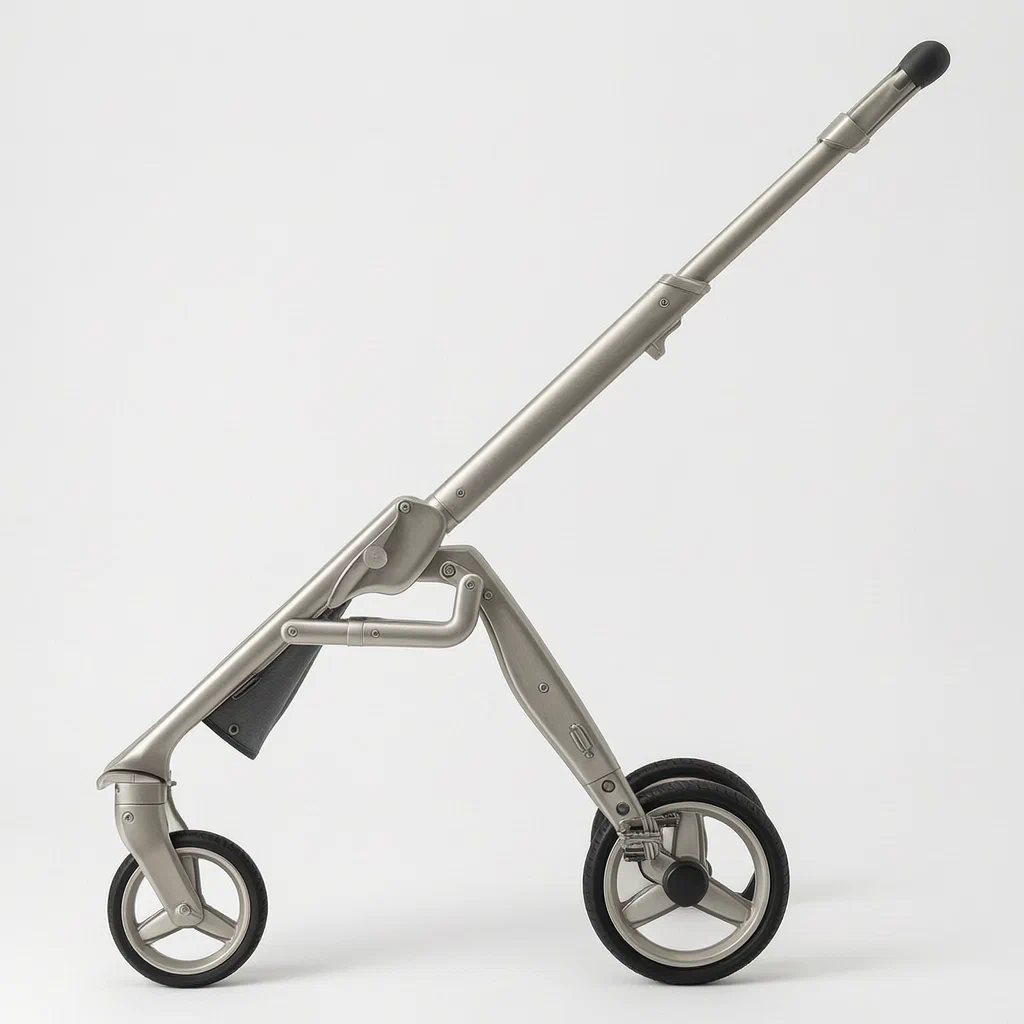

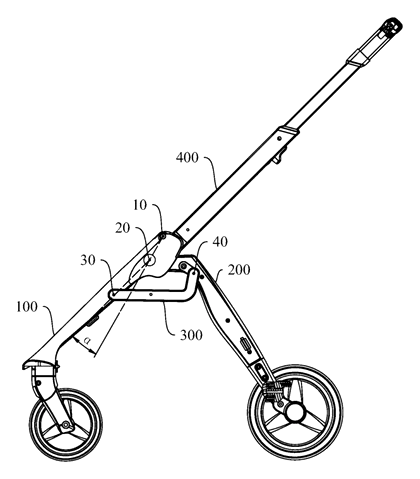

The patent describes a stroller frame composed of two symmetrical side frames. Each side frame forms a four-bar linkage consisting of four main parts:

1. A handle rod (400).
2. A front foot bar (100).
3. A connecting rod (300).
4. A rear foot bar (200).

These parts are hinged sequentially. The handle rod connects to the front foot bar at a first hinge point (10) and to the rear foot bar at a second hinge point (20). In the unfolded state, the first hinge point is positioned higher than the second. To fold the stroller, the handle rod and rear foot bar rotate toward the front foot bar from opposite sides.

To mount the seat, the design includes an adapter (600). The rear side of this adapter is hinged directly to the rear foot bar. The front side of the adapter is connected to the connecting rod through a support bar (500). This arrangement creates additional linkage paths, allowing the seat’s weight and dynamic forces to be shared among the adapter, support bar, connecting rod, and rear foot bar, rather than resting on a single joint.

Who it is for

• Stroller brands looking for durable frame structures that simplify seat attachment and removal.
• OEM manufacturers needing clear hinge positions, tube lengths and linkage geometry for production drawings.
• Design engineers working on compact travel systems where load distribution is critical for safety standards.
• Retailers stocking versatile strollers that offer easy seat conversion options for growing families.

How it works

The main parts

Opening and closing

1. Unfolded State: The four-bar linkage is extended. The handle rod stands upright relative to the ground. The adapter holds the seat above the frame.
2. Folding Action: The handle rod and the rear foot bar are moved toward the front foot bar. Because the first hinge (top) is higher than the second hinge (bottom), the two bars swing in from opposite sides of the front foot bar.

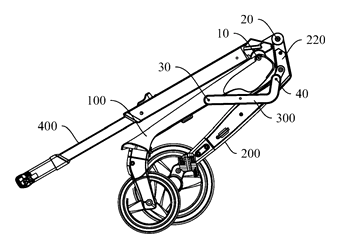

3. Collapse: The handle rod and rear foot bar move toward the front foot bar until they meet it and cannot continue, leaving the frame folded.
4. Seat Removal: The adapter remains attached to the frame structure. Depending on the specific latch design (not detailed in claims), the seat can be lifted off the adapter.

Applications

Travel Systems

Families who fly frequently benefit from the compact folded frame. The load path stays within the side frames when the stroller is folded for a car trunk or an overhead bin.

City Walking

Urban parents navigating curbs and uneven pavement require sturdy frames. The multi-hinge design spreads the seat and folding loads across the connecting rod, support bar and adapter rather than isolating them at the seat mount.

Growing Families

Parents who need to move the seat between positions or swap seat units find the movable adapter useful. It lets the seat be lifted off or inserted without dismantling the entire stroller frame.

Rental Fleets

Stroller rental companies value durability. The patent’s focus on improving structural strength through load dispersion addresses the high-wear nature of shared-use equipment.

Where it is less suitable

• Heavy-Duty Jogging Strollers: This design focuses on folding convenience and standard urban use; jogging strollers typically require fixed, reinforced triangular frames for lateral stability.
• Single-Seat Fixed Configurations: If a brand sells only one permanent seat model, the complexity of the movable adapter might add unnecessary manufacturing cost.
• Ultra-Lightweight Umbrella Strollers: The four-bar linkage and adapter system adds weight compared to simpler scissor-frame designs used in basic umbrella strollers.
