Patent Information & Production OptionsCompact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle · Patent CN213799844U

Patent CN213799844U: bibliographic data, legal status, family, a plain-language reading of the claims, plus customization, US compliance points and how a manufacturing project runs.

At a glance

Patent numberCN213799844U (application CN202021868323)
TypeChina utility model (实用新型) - protects product shape and structure
Original titleBaby stroller convenient to fold (便于折叠的婴儿推车)
Patent ownerShaoxing Shangyu Rixing Hardware Products Co., Ltd.
InventorsZhao Guosong
Filing date2020-08-31
Grant date2021-07-27
Status (China)In force - no termination recorded; a China utility model lasts at most 10 years from filing (to 2030-08-31)
Patent familyChinese filings only - no US, European, Japanese, PCT or other filings listed
Cited by3 later documents
SourceGoogle Patents (search for CN213799844U)

What the claims cover, in plain language

Claim 1 - a stroller with a frame and seat; each of two side frames is a foldable four-bar linkage of handle bar, front leg, link and rear leg. Unfolded, the handle-to-front-leg hinge is higher than the handle-to-rear-leg hinge; when folded, the handle bar and rear leg rotate toward the front leg from its two sides. The handle bar is telescoping, with a lower handle hinged to both legs and a sliding upper handle.

Claim 2 - a retractable positioning pin in the upper handle and a matching hole in the lower handle. Claim 3 - a spring driving the pin, and a release switch with a slider pulling the pin free by a second cable. Claim 4 - a locking mechanism: a notch on the front leg, a retractable lock tongue at the handle bar end driven by a first spring, a first cable from the slider and a driver that pulls the tongue out. Further claims - details of the hinges, seat mounting and wheel assemblies.

This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.

What this means for US production

This patent was filed only in China. It is still in force in China, so making or selling this design in China would need the owner’s permission while it lasts (at most until 2030-08-31). It has no US or other foreign counterpart and does not restrict the design outside China.

Two points to settle early:

  • Other patents may exist. Stroller folding mechanisms are heavily patented by large stroller brands, and compact travel strollers have been the subject of US patent disputes, so a freedom-to-operate (FTO) review of the linkage, telescoping handle and release is essential before tooling.
  • Child-safety testing. Locks, hinge pinch points and stability are tested to the US stroller standard by an accepted lab before any sale.

Customization and manufacturing

What can be customized

AreaOptions
FrameAluminum or steel tubes, colors, folded size target
SeatRecline positions, reversible seat, car seat adapters
WheelsWheel size, suspension, brake type
HandleTelescoping range, foam or leather grip, cup holder
Canopy and basketUPF canopy, peekaboo window, basket size
ExtrasRain cover, carry strap, travel bag

Things to plan for (US market)

  • 16 CFR 1227 / ASTM F833 - the mandatory CPSC standard for carriages and strollers: locks, stability, brakes, restraints, hinge pinch points and warnings; third-party testing.
  • CPSIA - lead and phthalate limits, tracking labels and a Children’s Product Certificate.
  • Product registration card (16 CFR 1130) - required for durable infant products.
  • Car seat adapters - if sold as a travel system, the car seat is certified to FMVSS 213 and compatibility is tested.
  • UPF claims - canopy sun-protection claims follow AATCC 183 testing.

How a project runs

  1. Inquiry - stroller type, folded size target, features and quantity.
  2. Design - linkage geometry, hinges, lock and cable routing, seat.
  3. Prototype - working frames for fold cycles and stability tests.
  4. Pilot run - ASTM F833 testing at an accepted lab, labels and manual.
  5. Production - tube cutting and bending, hinge molding or die-casting, sewing, assembly.

Quantities & timeline

The frame needs tube bending and drilling fixtures, the hinges and lock housings need injection or die-cast molds, and the seat and canopy are sewn. Fold-cycle durability and certification testing take most of the time. Send us your stroller type, features, folded size target, quantity and target price and we will reply with options.

Patent drawings

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 1
Fig. 1 - Diagram of the four-bar side frame.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 2
Fig. 2 - The stroller.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 3

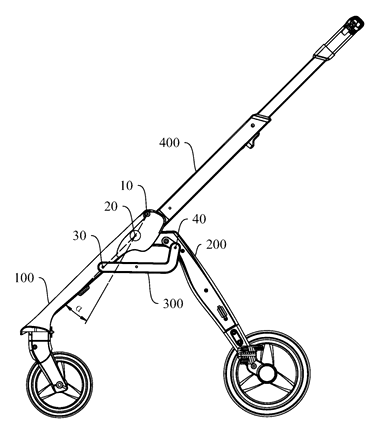

Fig. 3 - Side frame unfolded.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 4

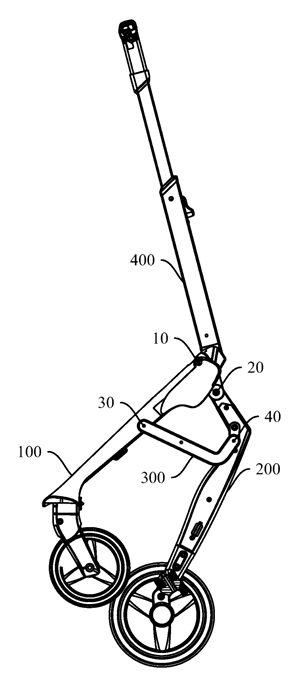

Fig. 4 - Side frame with the handle extended upward.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 5
Fig. 5 - Side frame partly folded.

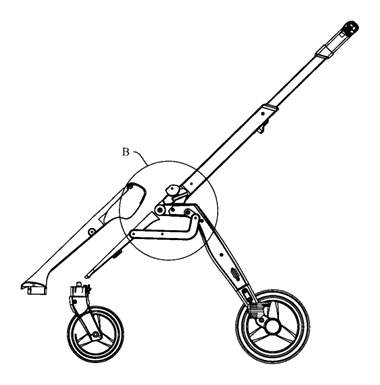

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 6
Fig. 6 - Side frame near the folded position.

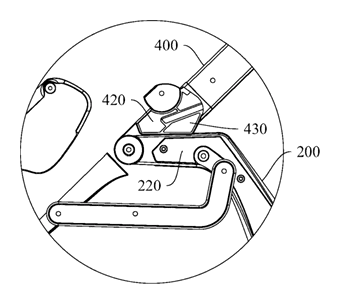

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 7
Fig. 7 - Detail of the hinge area.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 8

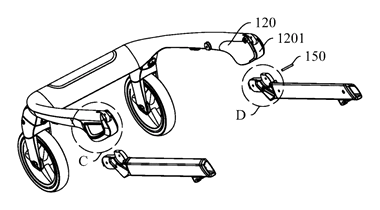

Fig. 8 - The lower frame with wheels.

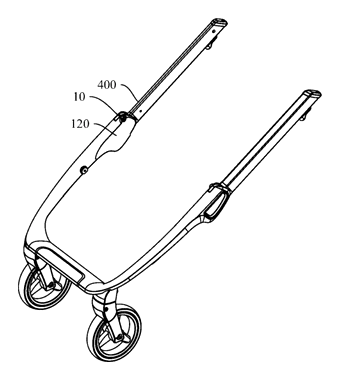

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 9
Fig. 9 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 10

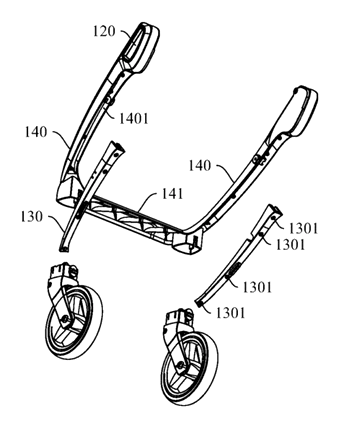

Fig. 10 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 11

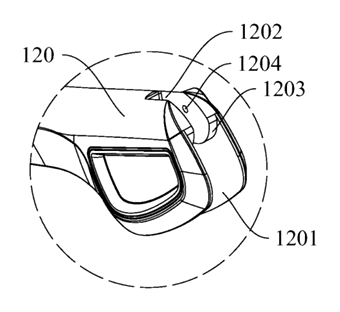

Fig. 11 - Further detail from the patent drawings.

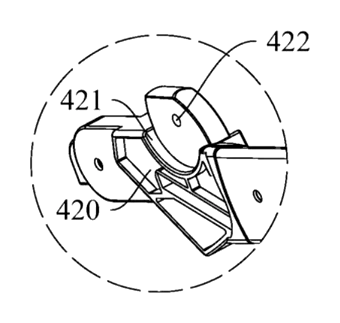

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 12
Fig. 12 - Further detail from the patent drawings.

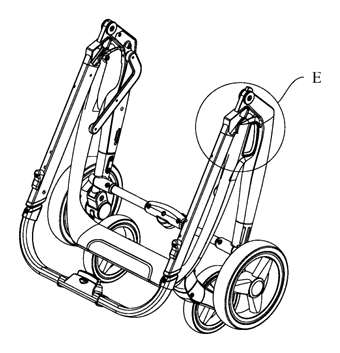

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 13
Fig. 13 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 14

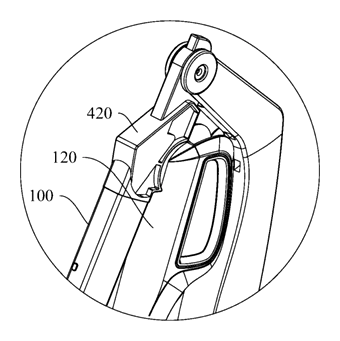

Fig. 14 - Further detail from the patent drawings.

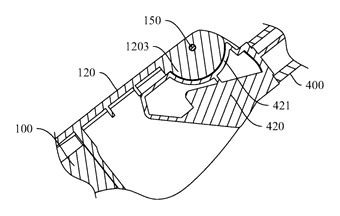

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 15
Fig. 15 - Further detail from the patent drawings.

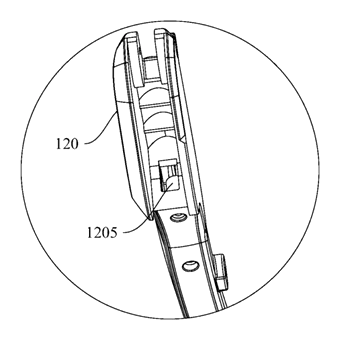

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 16
Fig. 16 - Further detail from the patent drawings.

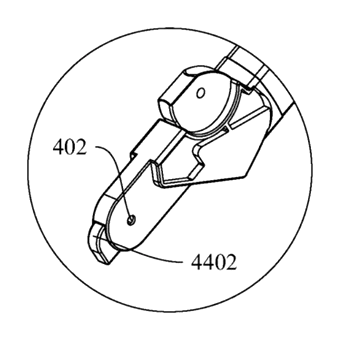

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 17
Fig. 17 - Further detail from the patent drawings.

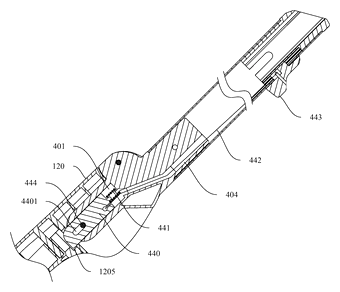

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 18
Fig. 18 - Further detail from the patent drawings.

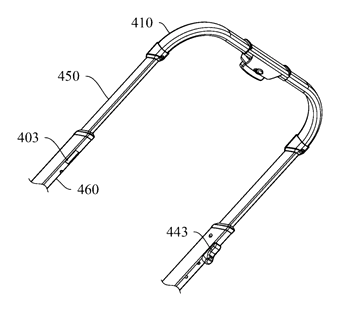

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 19
Fig. 19 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 20

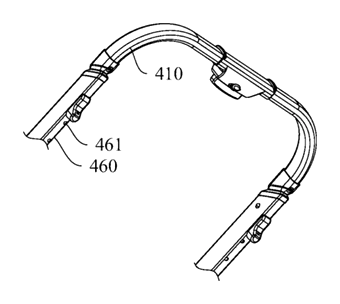

Fig. 20 - Further detail from the patent drawings.

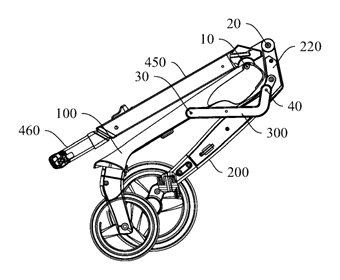

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 21
Fig. 21 - Further detail from the patent drawings.

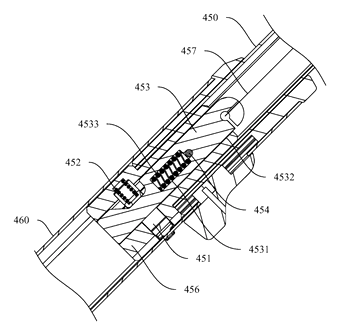

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 22
Fig. 22 - Further detail from the patent drawings.

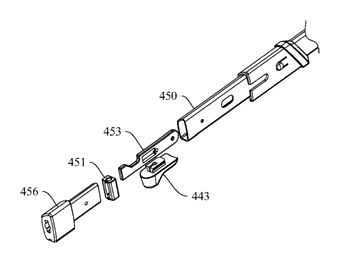

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 23
Fig. 23 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 24

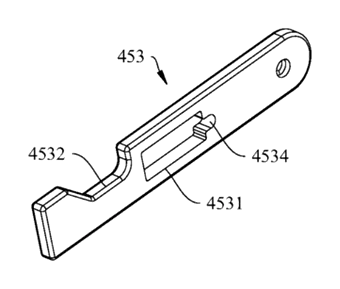

Fig. 24 - Further detail from the patent drawings.

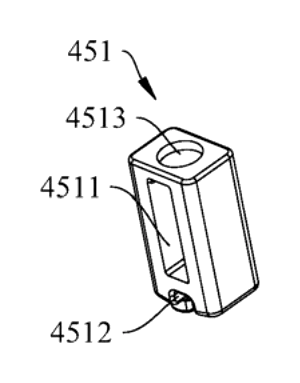

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 25
Fig. 25 - Further detail from the patent drawings.

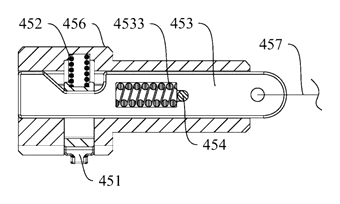

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 26
Fig. 26 - Further detail from the patent drawings.

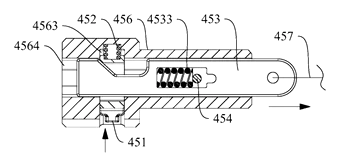

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 27
Fig. 27 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 28

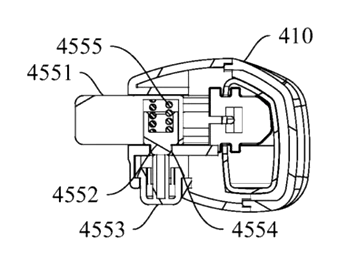

Fig. 28 - Further detail from the patent drawings.

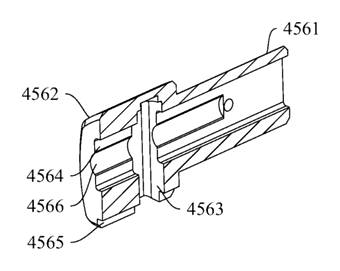

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 29
Fig. 29 - Further detail from the patent drawings.

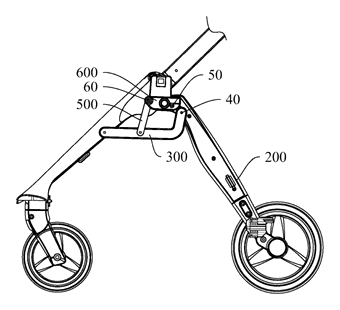

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 30
Fig. 30 - Further detail from the patent drawings.

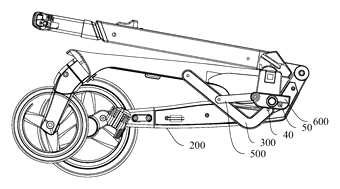

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 31
Fig. 31 - Further detail from the patent drawings.

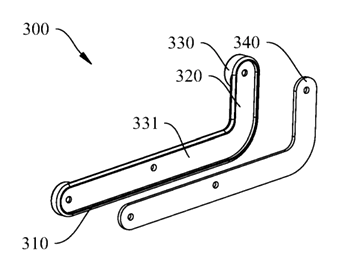

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 32
Fig. 32 - Further detail from the patent drawings.

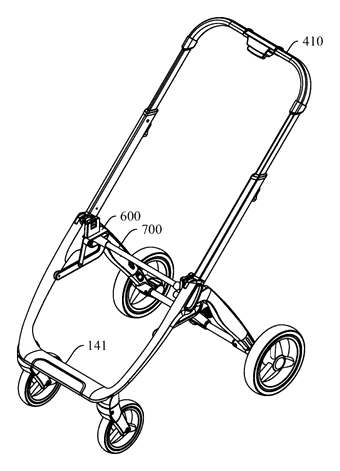

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 33
Fig. 33 - Further detail from the patent drawings.

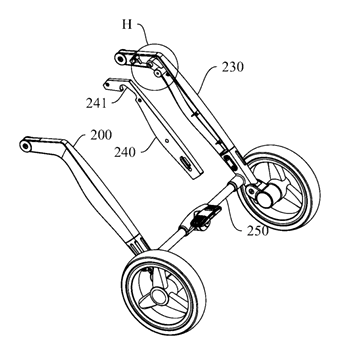

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 34
Fig. 34 - Further detail from the patent drawings.

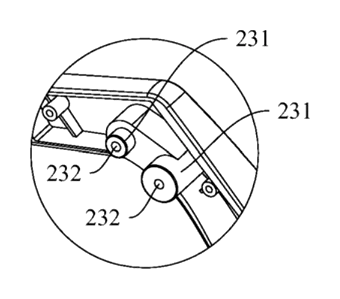

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 35
Fig. 35 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 36

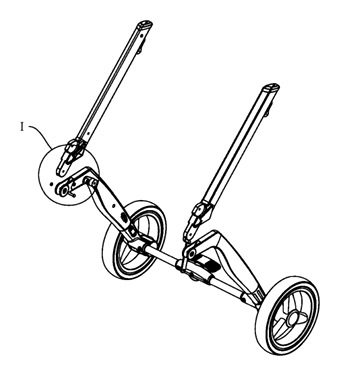

Fig. 36 - Further detail from the patent drawings.
Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 37

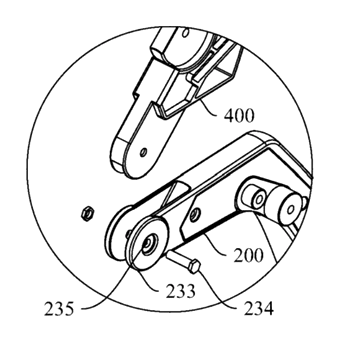

Fig. 37 - Further detail from the patent drawings.

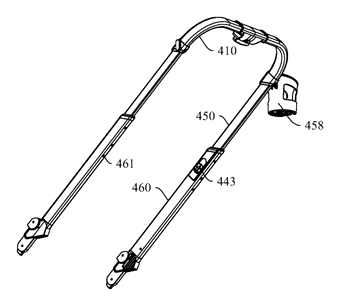

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 38
Fig. 38 - Further detail from the patent drawings.

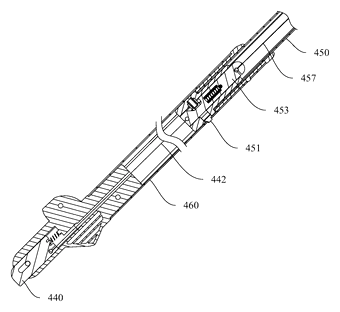

Compact-Fold Stroller with a Four-Bar Side Frame and Telescoping Handle - Patent Fig. 39
Fig. 39 - Further detail from the patent drawings.

Drawings reproduced from the public patent document for reference.
