Cordless Electric Shoe Scrubber That Feeds Cleaner Through the Center of the Brush

Cleaning sneakers by hand means a bowl of soapy water, an old toothbrush and a mess on the counter. Powered shoe brushes exist, but most still need the cleaner squirted on by hand, and putting a liquid tank next to a battery invites leaks. This design, filed by a Haier washing-machine company, keeps them apart. The cleaner tank snaps onto the top of the brush head, away from the battery in the handle, and a spring-loaded check valve seals it the moment it is pulled off. In the head, a motor turns the drive shaft through a pair of gears, set off to one side so the shaft can be hollow. A small pump pushes cleaner down through that shaft to a nozzle at the center of the spinning brush, so the liquid lands exactly where the bristles work.

  • China utility model - in force in China until Jan 2031 at most
  • No filings outside China
  • Shoe care & cleaning tools
  • ABS housing, gear motor, micro pump, Li-ion battery
Request a Quote How it works →
Cordless Electric Shoe Scrubber That Feeds Cleaner Through the Center of the Brush - patent drawing

🌀

Spinning brush

A motor in the head turns a round brush through a pair of gears.

💧

Center liquid feed

A pump sends cleaner down a hollow drive shaft to a nozzle in the middle of the brush.

🧴

Snap-off tank with valve

The cleaner tank sits on top of the head; a check valve seals it when removed.

🔋

Battery kept dry

The battery sits in the handle, separate from the tank, reducing leak risk.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

Shoes - especially white sneakers - get dirty fast, and cleaning them by hand is slow and messy. According to the patent, existing brushing devices are hard to use on shoes and inconvenient. Simply adding a pump and tank to a powered brush raises another issue: if the tank sits in the handle next to the battery, a leak can reach the electrics, and a tank that drips when removed makes a mess.

The solution

  1. The housing (1) has a head cavity (13) and a handle cavity (14). The brush head (2) sits outside the head cavity.
  2. In the head cavity are a brush drive (3) - a motor unit (31) and a drive shaft (32) that comes out of the housing to the brush - and a liquid drive (4), a small pump.
  3. The battery (7) is in the handle cavity, powering both drives.
  4. A cleaner tank (5) is removably fitted to the top of the head cavity, outside both cavities. Its outlet has a check valve - a perforated baffle, a spring and a plug - that closes when the tank is removed and is pushed open by a pin on the housing when it is fitted.
  5. The drive shaft has a through hole (321) along its axis. The motor is offset from the shaft and drives it through gears, leaving the center of the shaft free for liquid.
  6. Around the shaft, the housing forms a liquid chamber with a rotating seal. The pump pushes cleaner into the chamber, through the hollow shaft and out of a nozzle with a smaller hole and a bowl-shaped tip at the center of the brush.
Cordless Electric Shoe Scrubber That Feeds Cleaner Through the Center of the Brush - Patent drawing - scrubber

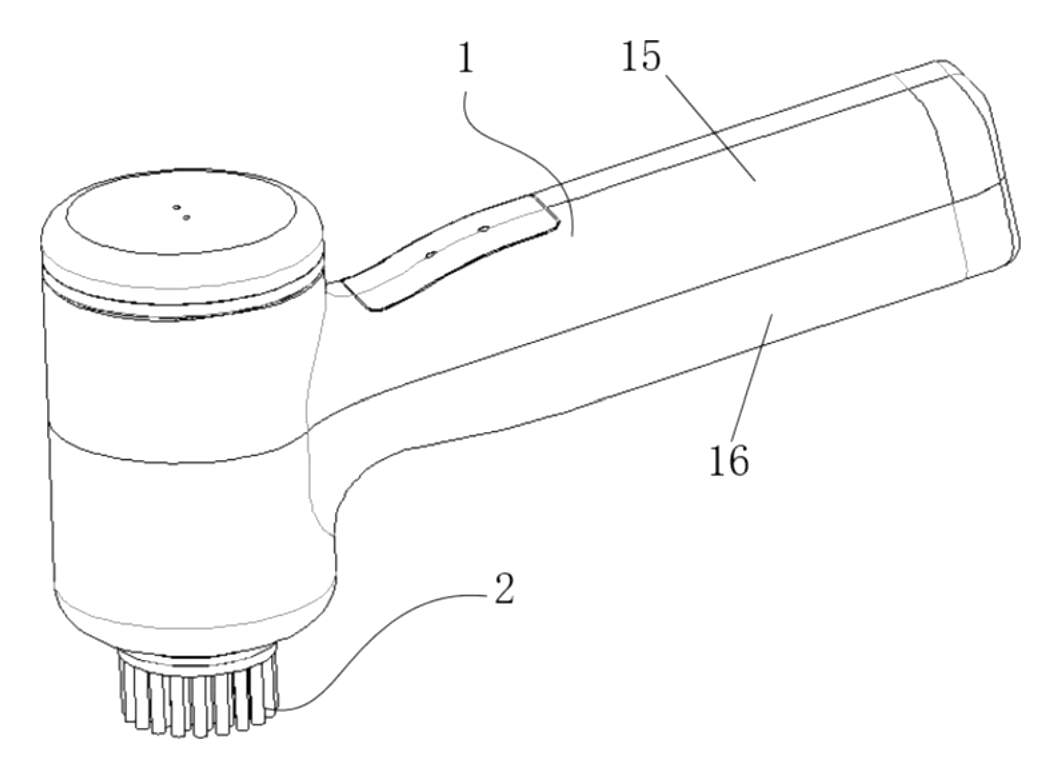

Patent figure 1 - the scrubber: housing (1) with handle and the round brush head (2).

Who it is for

  • Shoe care brands selling sneaker cleaning kits who want a powered tool with built-in cleaner.
  • Small-appliance and cleaning-tool brands adding a handheld scrubber to their range.
  • Sneaker resale and cleaning businesses that clean many pairs a day.
  • Online gadget sellers looking for a giftable cleaning tool with an obvious demo.

How it works

The main parts

Cordless Electric Shoe Scrubber That Feeds Cleaner Through the Center of the Brush - Patent drawing - section
Patent figure 2 - section through the head and handle: drives, tank and battery.
No.PartWhat it does
1HousingHead cavity (13) and handle cavity (14).
2Brush headRound spinning brush.
31Motor unitOffset from the shaft; drives it through gears.
32, 321Drive shaft and through holeTurns the brush; carries the cleaner.
4Liquid drivePump that moves the cleaner.
5Cleaner tankSnaps on top of the head; check valve at its outlet.
7BatteryIn the handle, apart from the liquid.
-NozzleSmall outlet at the brush center.

Using it

  1. Fill the tank with water and shoe cleaner and snap it onto the head.
  2. Switch on - the brush spins and the pump feeds cleaner to the brush center.
  3. Scrub the uppers, midsoles and outsoles; change brush heads for soft or stiff bristles.
  4. Pull off the tank to rinse it - the valve keeps it from dripping - and charge the handle.
Cordless Electric Shoe Scrubber That Feeds Cleaner Through the Center of the Brush - Patent drawing - drive unit
Patent figure 4 - the drive unit: motor, gears and the brush (2) on the hollow shaft.

Applications

Sneaker cleaning at home

Owners of white and knit sneakers can clean them at the sink in a few minutes.

Sneaker cleaning services and resellers

Shops that restore sneakers for sale get a faster tool for the scrubbing step.

Sports teams and schools

Cleats and court shoes caked in mud are cleaned without a bucket.

Bags, caps and gear

The same brush works on canvas bags, caps and other small fabric items.

Small household surfaces

With a different brush head it can scrub tile grout, sinks and stove knobs.

Where it is less suitable

  • Suede and delicate leather - a spinning brush and liquid can damage them; soft heads and dry cleaning methods are needed.
  • Large floor areas - this is a handheld spot-cleaning tool, not a floor scrubber.
  • Fully submerged use - the housing is splash-resistant by design, not waterproof for immersion unless specified.

Frequently asked questions

How does the cleaner reach the brush?

A small pump pushes cleaner from the tank into a chamber around the drive shaft. The shaft is hollow, so the liquid runs down through it and out of a nozzle at the center of the spinning brush.

Why doesn’t the tank drip when I take it off?

Its outlet has a spring-loaded check valve. A pin on the housing pushes it open when the tank is fitted; when the tank is pulled off, the spring closes it.

Is it safe to use with water near the battery?

The battery sits in the handle, separate from the tank and the head. The finished tool is still tested for water ingress and given an IP rating.

Which shoes can it clean?

Canvas, knit, mesh, rubber and smooth leather sneakers are the main targets. Suede and delicate leathers need soft heads and gentle cleaners.

Can the brush heads be changed?

Yes. Heads with different bristle stiffness, sponges or pads can share one quick-change fitting.

How long does the battery last?

Run time depends on the motor, pump and battery capacity chosen, and is measured on prototypes.

Can this design be made and sold in the US?

The patent was filed only in China, so it does not restrict the design in the US. It is in force in China until January 2031 at most, and making or selling it there needs the owner’s permission. Powered scrub brushes may be covered by other US patents - see Patent & Production - so we recommend a freedom-to-operate check before volume production.

Are you affiliated with the patent owner?

No. IP2M is an independent design and manufacturing service working from the public patent document.
