Motorized Shelf Display That Presents a Product to Shoppers

The problem

On a crowded shelf, one product among hundreds is easy to miss, and the usual fix - a promoter in the aisle - costs wages every hour the store is open. Static shelf talkers and wobblers are cheap but easy to ignore. The patent sets out to replace part of the human promoter with a compact device that sits on an ordinary shelf.

The solution

The patent’s device is a small box that moves one product toward the shopper:

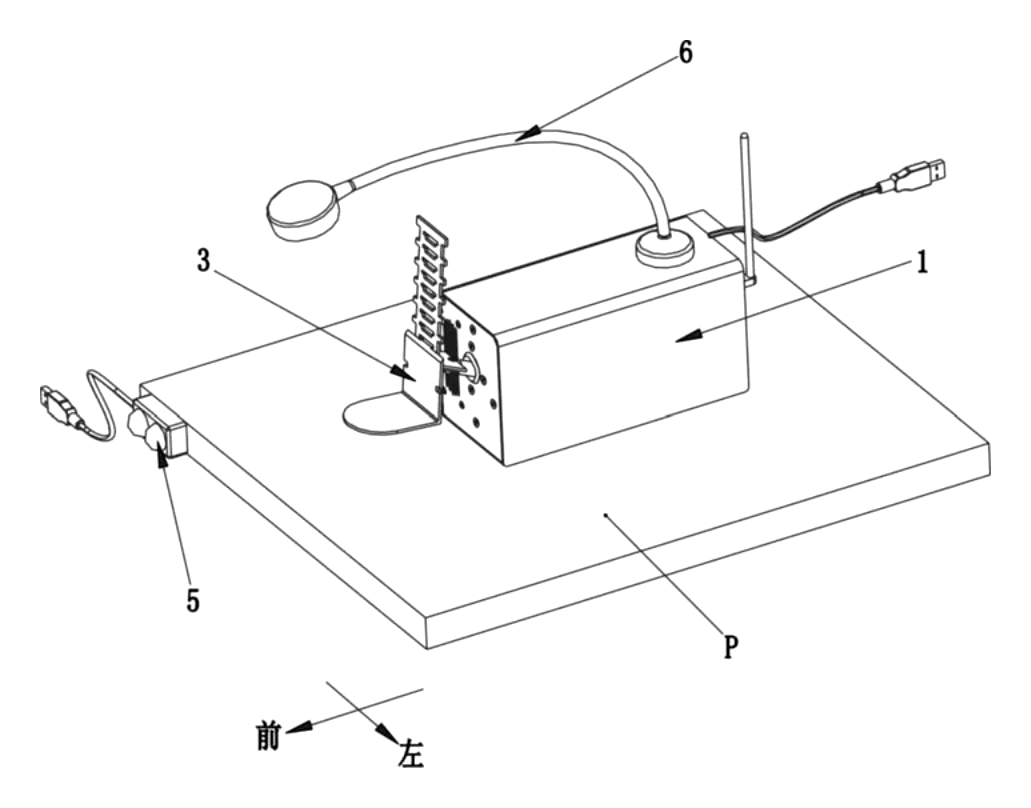

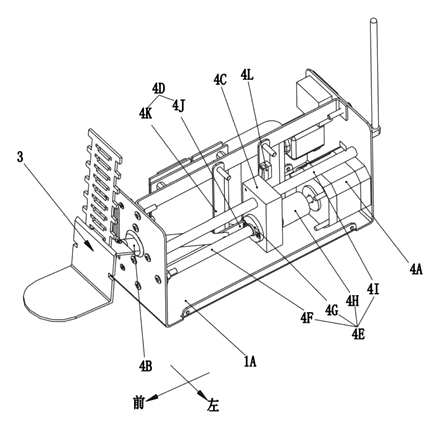

1. A housing (1) on the shelf contains a motor (4A), a push rod (4B), a slider (4C) and a linkage (4D) of two swing arms.
2. A product holder (3) - an L-shaped seat - is fixed to the front of the push rod. The product is held on it with an elastic band (8).
3. As the slider moves forward, the linkage makes the rod first rise and move forward, lifting the product over the shelf’s price rail, then lower and move forward to the presenting position in front of the shelf, facing the aisle.
4. In front, the rod can rock back and forth for a set time (the patent mentions about 2 seconds) to attract attention, then reverses the path to bring the product back.
5. A sensor unit (5) with two sensors and a projector (5C) detects people and counts them; a gooseneck lamp (6) and a panel lamp (10) light the product.

Who it is for

• Retail display and POP (point-of-purchase) companies looking for a motorized display with a clear mechanical story.
• Beverage, snack, cosmetics and health brands running in-store promotions or product launches.
• Retail-media and shopper-marketing agencies that need shelf devices with people counting.
• Store-fixture suppliers offering an add-on to standard shelving.

How it works

The main parts

One presentation cycle

1. A shopper approaches - the presence sensor wakes the unit; the projector and speaker can start.

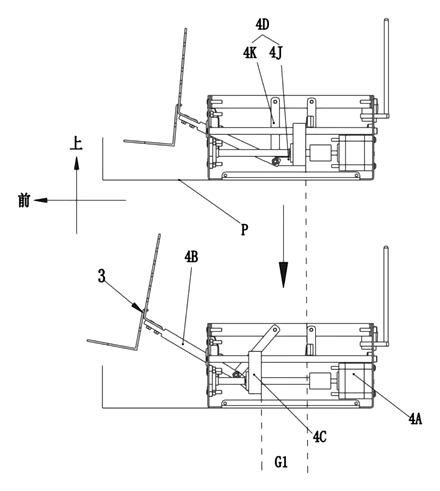

2. Lift and forward - the holder rises and moves forward until the product is above the price rail.

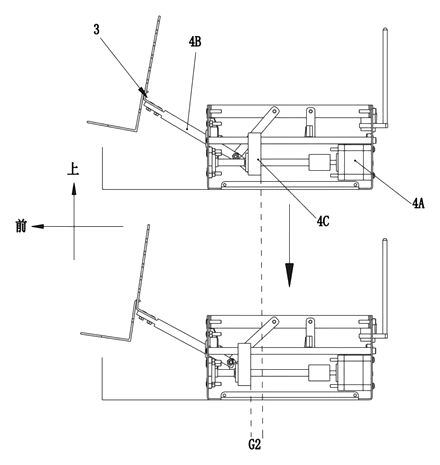

3. Down and forward - the product settles in front of the shelf, label facing the aisle.
4. Attract - the product rocks back and forth briefly.
5. Return - the same path in reverse brings the product back onto the shelf.

Products it can hold

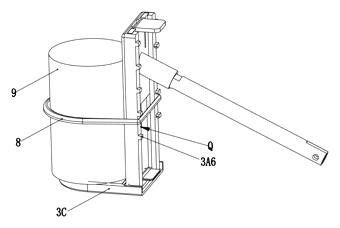

The patent names cans, bottles, bags and boxes. The holder’s back adjusts in height, a removable sleeve fits different sizes, and an elastic band holds the product. Bottles can be lit from behind through holes in the holder.

Applications

Product launches in supermarkets

A new flavor or pack moves out to meet shoppers for the launch period.

Beverage and energy-drink promotions

Bottles lit from behind and pushed toward the aisle at eye level.

Cosmetics and personal care

Premium items presented one at a time on a beauty shelf.

Convenience stores and pharmacies

Counter-top and shelf promotions where space for a human promoter is limited.

Trade shows and showrooms

An eye-catching, self-running product presenter for booths.

Where it is less suitable

• Heavy or very large products - the push rod and holder are sized for single cans, bottles and small boxes.
• Low-margin, everyday items - a motorized unit makes sense for promotions and launches, not permanent use on every SKU.
