Backpack with Removable Body-Shaped Inner Frame

Most backpacks hang their whole load from two shoulder straps. This design puts a lift-out inner frame inside the bag, shaped to the human back: a spine bar, curved ribs that wrap toward the lower ribs, and a base plate that sits at the back of the pelvis. The frame holds the bag's shape and spreads the weight over the back and hips. It lifts out so the bag can be washed.

  • China utility model - in force in China
  • No filings outside China
  • Backpacks
  • Molded frame plus cut-and-sew bag
Request a Quote How it works →
Backpack with Removable Body-Shaped Inner Frame - patent drawing

🦴

Inner frame shaped to the back

A spine bar and curved waist ribs follow the shape of the back; the patent bases the shape on CT data from 300 adults.

⚖️

Load on back and hips

A base plate rests at the back of the pelvis, so the load is not carried by the shoulders alone.

🧺

Lifts out for washing

The frame is a separate part sized to the bag - take it out and the bag can be cleaned like any other.

🎽

Harness with chest straps

One-piece shoulder straps, adjustable lower straps and two cross straps that buckle at chest height.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

A conventional backpack is a soft bag on two shoulder straps. The weight hangs from the shoulders and presses on a small area of the back, and when the bag is not full it sags out of shape. The patent describes the result as an uneven load on the body, with strain in the shoulders and lower back for people who carry a bag every day.

The solution

The patent adds a separate inner frame (2) that sits inside the backpack (1):

  1. The frame has a vertical enclosure (21) that lies against the back panel: a spine bar (211) along the line of the spine and waist ribs (212) that curve forward toward the lower ribs in a half-wrap.
  2. A base plate (22), molded in one piece with the enclosure, lies across the bottom of the bag and is shaped to sit at the back of the pelvis. It carries the load of the frame and the bag.
  3. Connecting ribs (23) cross the base plate and enclosure to stiffen the frame.
  4. The shapes are based on CT measurements of 300 adults, according to the patent. The frame is slightly smaller than the bag, so it fits without rattling.
  5. The frame is independent of the bag - it lifts out, so the bag can be washed.

The patent’s stated aim is to spread the load over the back, waist and shoulders and to keep the bag in shape.

Backpack with Removable Body-Shaped Inner Frame - Patent drawing - the inner frame

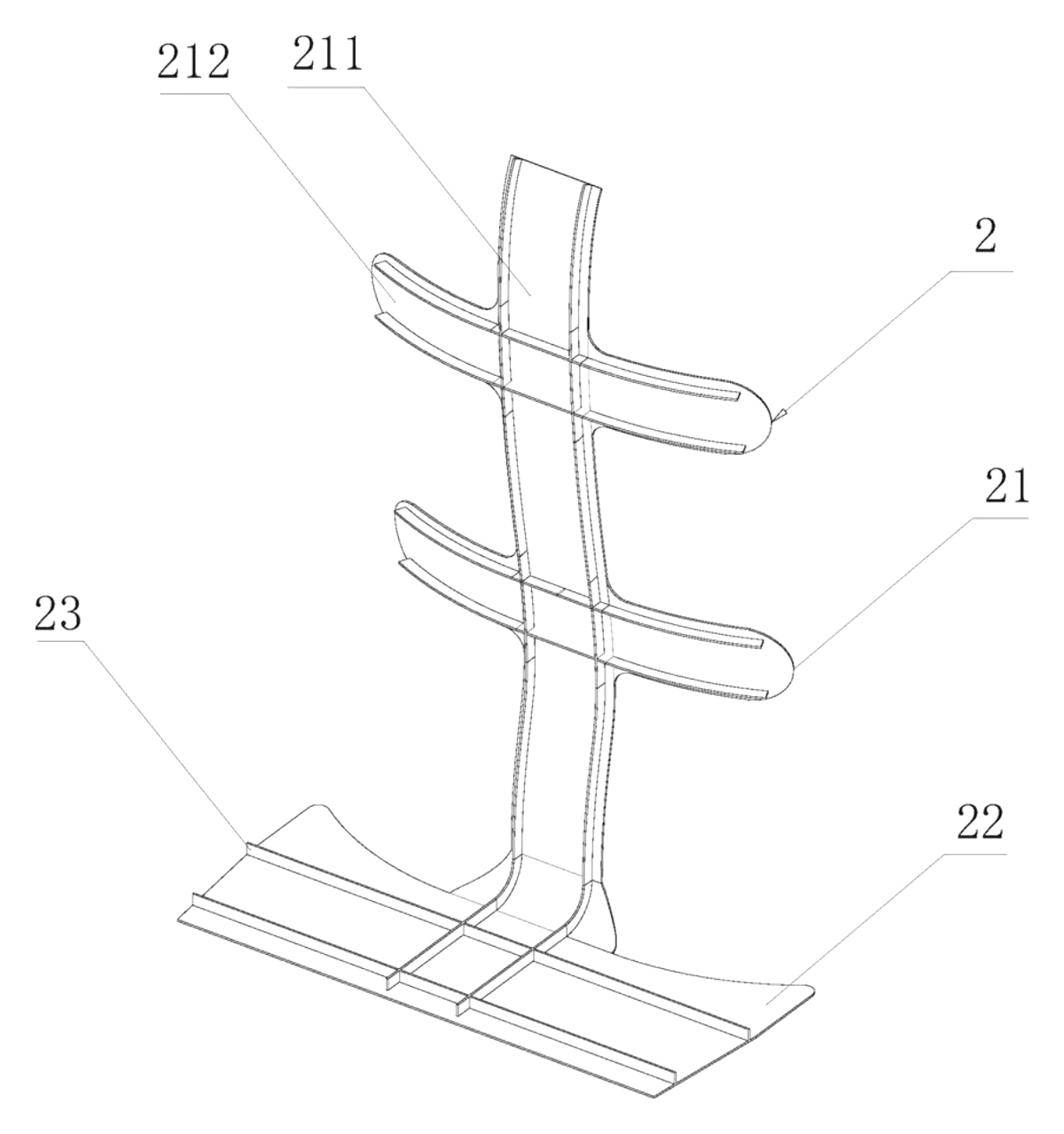

Patent figure 2 - inner frame (2): enclosure (21) with spine bar (211) and waist ribs (212), base plate (22) and connecting ribs (23).

Who it is for

  • Backpack brands wanting an “ergonomic frame” line for commuters, students or travelers.
  • Work-bag and tool-bag brands whose customers carry heavy loads every day.
  • Outdoor and travel brands looking for a structured daypack that keeps its shape.

How it works

The main parts

Backpack with Removable Body-Shaped Inner Frame - Patent drawing - exploded view
Patent figure 3 - exploded view: bag cavity (12), back panel (13), inner frame (21, 22, 23), zipper (15), frame (11) and harness (141, 142, 143).
No.PartWhat it does
1BackpackThe bag body.
11Bag frameOuter structure of the bag.
12Main compartmentStorage space, joined to the frame.
13Back panelFixed at the bottom; zips to the bag along its other edges.
15ZipperOpens the back panel - this is how the inner frame goes in and out.
14HarnessShoulder straps (141), lower fixing straps (142) with adjusters, cross straps (143).
2Inner frameSeparate support, sized to the bag.
21EnclosureUpright part against the back panel.
211Spine barFollows the line of the spine.
212Waist ribsCurve toward the lower ribs in a half-wrap.
22Base plateBottom support shaped to sit at the back of the pelvis.
23Connecting ribsCriss-cross ribs that stiffen the frame.

The patent lists polyethylene, polypropylene, PVC, stainless steel or aluminum alloy for the frame.

Wearing it

Backpack with Removable Body-Shaped Inner Frame - Patent drawing - assembled backpack
Patent figure 1 - assembled backpack (1) with back panel (13), zipper (15) and harness (14).
  1. Pack the bag - the frame keeps it upright and square.
  2. Put it on with the one-piece shoulder straps (141).
  3. Adjust the lower straps (142) so the base plate sits at the lower back.
  4. Buckle the two cross straps (143) at chest height to hold the bag in place.

Cleaning it

  1. Unzip the back panel (13) along its zipper (15).
  2. Lift out the inner frame (2).
  3. Wash the bag, wipe the frame, and slide the frame back in.

Applications

Commuter and laptop backpacks

A structured bag that keeps its shape and spreads a daily load.

Student backpacks for older students

Heavy books every day; the frame and chest straps keep the bag close to the body.

Work and tool backpacks

Technicians and tradespeople carrying heavy tools and meters.

Travel daypacks

A bag that stands up on its own and packs neatly.

Premium “ergonomic” lines

A visible, demonstrable feature for a higher-priced range - the frame can be shown out of the bag.

Where it is less suitable

  • Ultralight or packable bags - a rigid frame adds weight and cannot be folded away.
  • Medical claims - the bag can be described as spreading the load; it should not be sold as treating or preventing back conditions without proper evidence.

Frequently asked questions

What does the inner frame do?

It holds the bag in shape and rests against the back and the back of the pelvis, so the load is spread over the back and hips instead of hanging only from the shoulders.

Is the frame removable?

Yes. It is a separate part, sized to the bag. Unzip the back panel, lift it out, and the bag can be washed.

What is the frame made of?

The patent lists polyethylene, polypropylene, PVC, stainless steel or aluminum alloy. A molded plastic frame is the usual choice for weight and cost.

Does one frame fit everyone?

The patent bases the shape on CT data from 300 adults. For a product range, frames can be made in several sizes for different torso lengths.

Can we say it is good for the spine?

Comfort and load-distribution claims are fine with testing to back them up. Claims about treating or preventing back conditions need medical evidence and can change how the product is regulated, so we recommend avoiding them.

Can it be made for children?

Yes, with a frame sized for children and CPSIA testing and labeling for the US market.

Can this design be made and sold in the US?

The patent was filed only in China, so it does not restrict the design in the US. It is still in force in China, where making or selling it would need the owner’s permission. Other framed-backpack designs may be patented - see Patent & Production - so we recommend a freedom-to-operate check before volume production.

Are you affiliated with the patent owner?

No. IP2M is an independent design and manufacturing service working from the public patent document.

Request a quote

Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN216534262U in the subject.

Helpful details to include:

  • Your company and sales channel (bag brand, outdoor retail, Amazon…)
  • Bag type and sizes (commuter, student, travel, work)
  • Frame material and sizes
  • Fabric, colors, branding and packaging
