Headlamp-to-Bumper Adapter Bracket That Sets Gap and Flush in Three Directions

The problem

The headlamp is bolted to the car body; the front bumper is held by its own brackets. Each part has tolerances, and so does the body. According to the patent, without a direct link the gap and flush between headlamp and bumper are hard to control, and the car can miss its appearance-quality targets. Shimming and rework on the assembly line cost time.

The solution

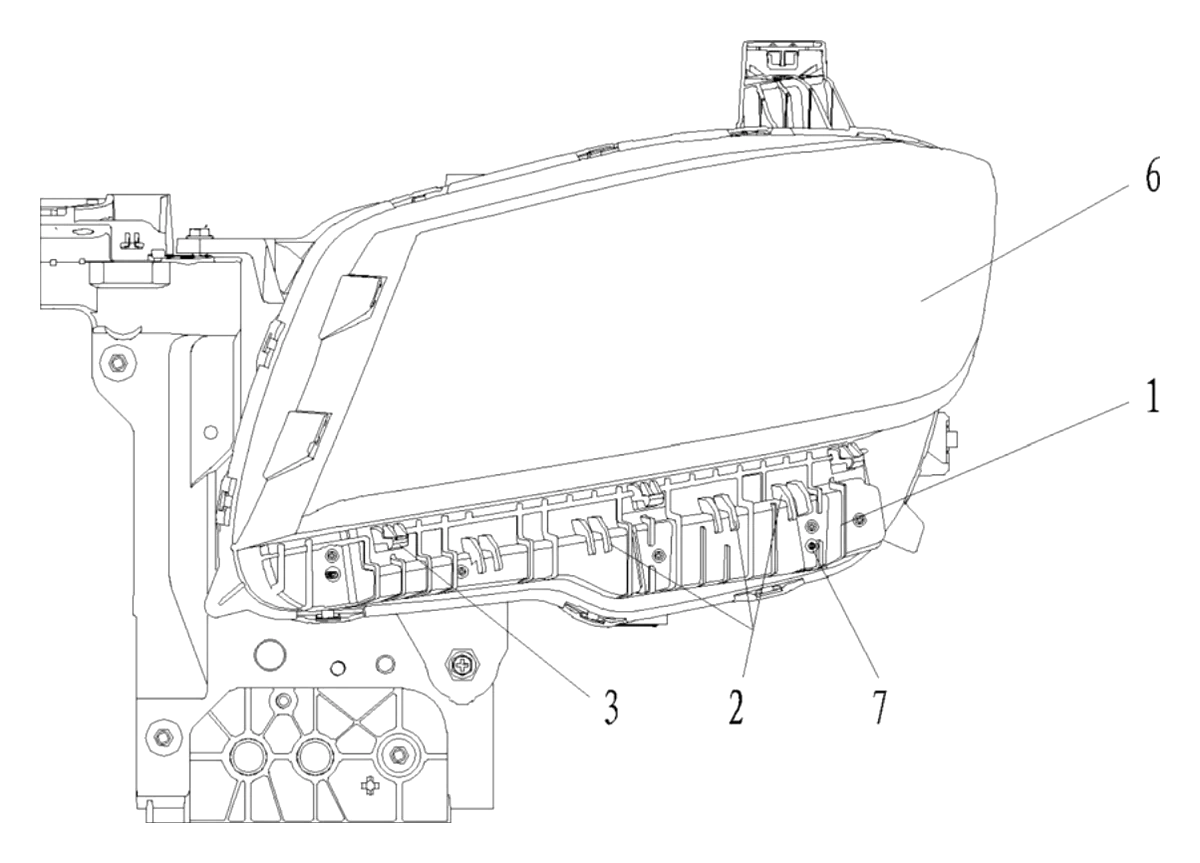

1. A bracket body (1) is screwed to the bottom of the headlamp housing (6). A cross locating pin (7) on the housing positions the bracket in a main-and-secondary locating scheme, so the bracket always sits in the same place relative to the lamp.

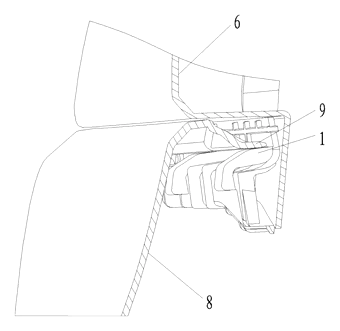

2. Along the bracket’s front edge, a row of support blocks (2) with coplanar top faces carries the upper flange (9) of the front bumper (8). This locates the bumper in height (Z).

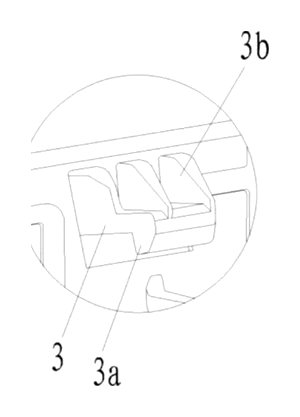

3. Between them, staggered with the support blocks, snap blocks (3) with downward clamping teeth (3a) clip into holes in the flange, locating the bumper fore-aft (X) and side to side (Y). A reinforcing rib (3b) joins each snap block to the body.
4. The bracket is a thin-wall part; vertical ribs (4) and horizontal ribs (5) on its back keep it stiff and light.

Who it is for

• Automotive tier-1 and tier-2 suppliers of lighting and exterior trim looking for a proven bracket concept for new vehicle programs.
• EV start-ups and low-volume vehicle makers who need to hit good gap-and-flush quality without expensive line adjustment.
• Collision-repair and aftermarket parts makers producing replacement headlamp brackets and bumper supports.
• Specialty vehicle and kit-car builders fitting production headlamps to their own bumpers.

How it works

The main parts

On the assembly line

1. Fit the bracket to the headlamp housing over the locating pin and screw it in place - this can be done at the lamp supplier.
2. Install the headlamp on the car.
3. Fit the bumper - its upper flange rests on the support blocks and the snap blocks click into the flange holes.
4. Check - the gap and flush follow from the lamp’s position, with no shimming.

Applications

New passenger-car programs

Front-end designs with tight headlamp-to-bumper gaps benefit from locating the bumper off the lamp.

Electric vehicles with smooth front ends

EVs with closed grilles show every gap; a direct link keeps the front face even.

Replacement brackets for collision repair

After a crash, repairers need brackets that restore the original fit without adjustment.

Low-volume and specialty vehicles

Small-series builders without fine-tuned body lines get repeatable fit from a simple molded part.

Rear-lamp and fascia variants

The same idea - locating a fascia from a lamp - can be adapted to tail lamps and rear bumpers.

Where it is less suitable

• Universal aftermarket fit - each bracket is specific to one headlamp and bumper pair; it is not a one-size accessory.
• Metal bumpers on trucks - heavy steel bumpers need bolted mounts, not snap blocks.
• Programs already in production - changing the locating scheme mid-cycle needs re-validation.
