Slide-Action Retractable Pen with a Friction-Loaded Cam That Ignores Gravity

The problem

Click pens are everywhere, and the click is part of the problem: it is noisy in meetings and classrooms, and the button spoils clean barrel designs. Slide or pull-action pens - where the user moves part of the barrel to extend the tip - answer that, and they have become popular in design-led stationery. The patent explains that existing pull-action mechanisms resist gravity poorly: because the latching parts move freely, the weight of the parts can upset the latch and the tip does not always stay where the user left it.

The solution

The patent keeps the familiar two-position cam but loads it with steady pressure:

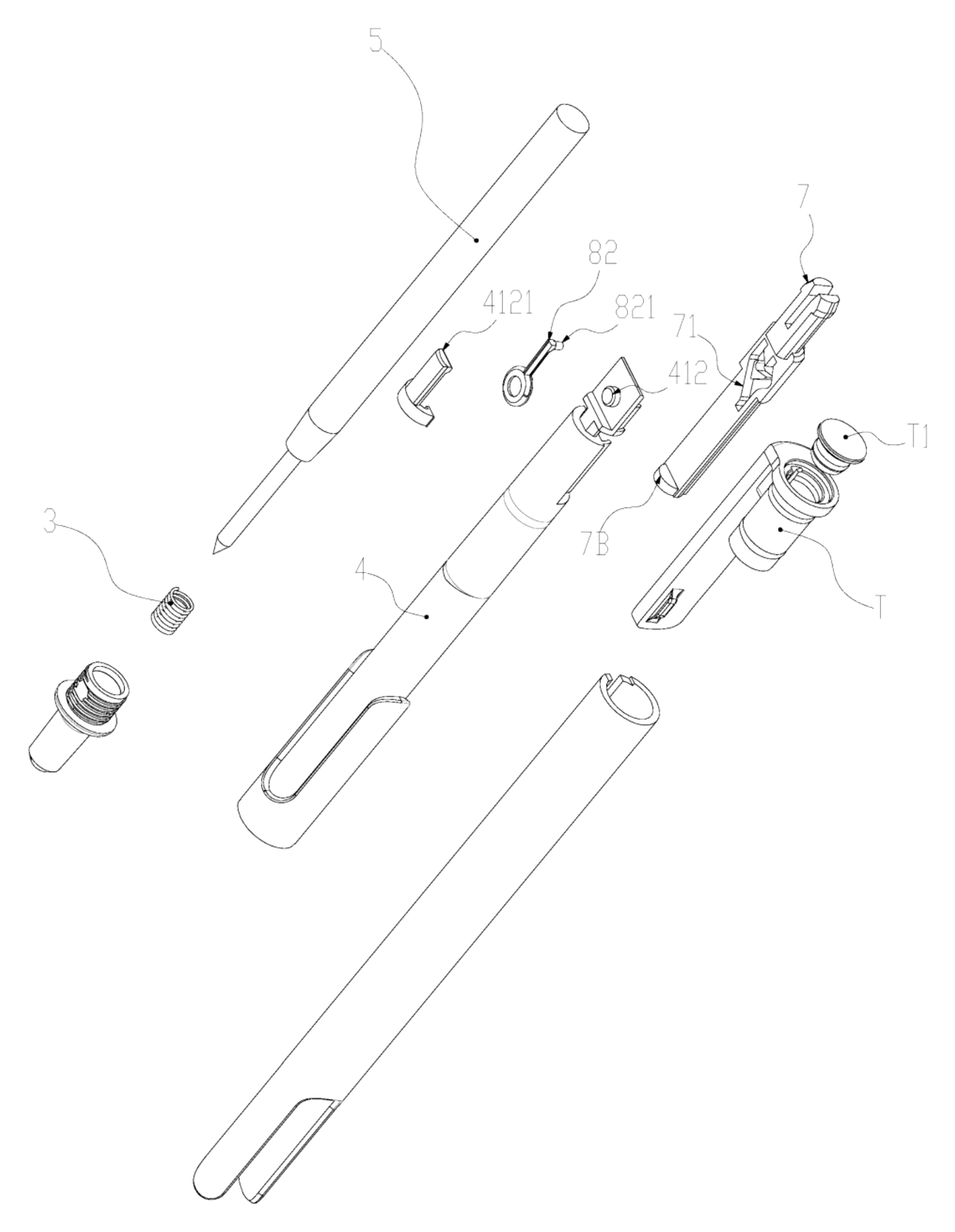

1. An outer barrel (1) holds the refill (5) and a return spring (3).
2. A positioning piece (7) fixed at the tail of the barrel - by snap fit, thread, adhesive or magnet - carries a shaped cam track (71).
3. An adjusting piece (4) slides inside the positioning piece and carries a rotating follower (82) on a boss (412). The follower’s tip (821) runs in the cam track.

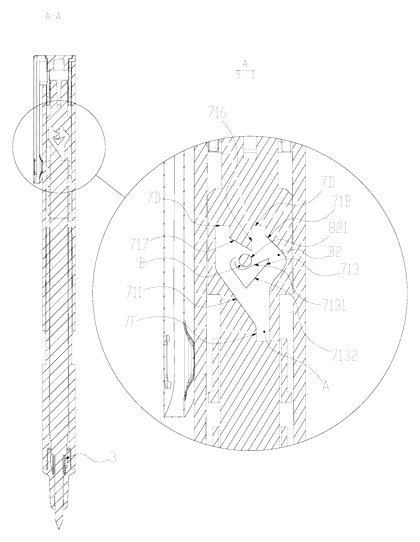

4. The track has a tip-out boss (713), a long switching wall (71B), a retract switching wall (711), a tip-out limit wall (716), a retract helper wall (717), and small buffer and error grooves (7D, 7F) to reduce wear.
5. In the retracted state the spring holds the follower at position A; in the writing state the boss traps it at position B against the spring.
6. A rotating fastener (4121) clips onto the adjusting piece and its pressure part (41212) presses the follower onto it, whichever way it turns. According to the patent, this pressure and friction give the mechanism its resistance to gravity.

Who it is for

• Design-led stationery brands that want a quiet, button-free pen as a signature product.
• Corporate gift and promotional pen suppliers - a slide-action pen stands out in a catalog full of click pens, and the smooth barrel is a large logo area.
• Pen factories looking for a pull-action mechanism module they can fit into their own barrels.
• Gel-pen and fineliner makers - the patent states the mechanism can carry ballpoint, gel and other refills.

How it works

The main parts

Using it

1. Hold the barrel and slide the adjusting piece. The follower runs along the switching wall and drops behind the tip-out boss - the tip is out.
2. Write. The spring and the boss hold the follower at position B; the fastener’s pressure keeps it there even when the pen is shaken.
3. Slide again. The follower is guided past the boss by the retract walls and the spring returns it to position A - the tip is in.
4. To change the refill, the front part of the pen unscrews; the clip can also be removed, and the patent notes it can serve as a cover.

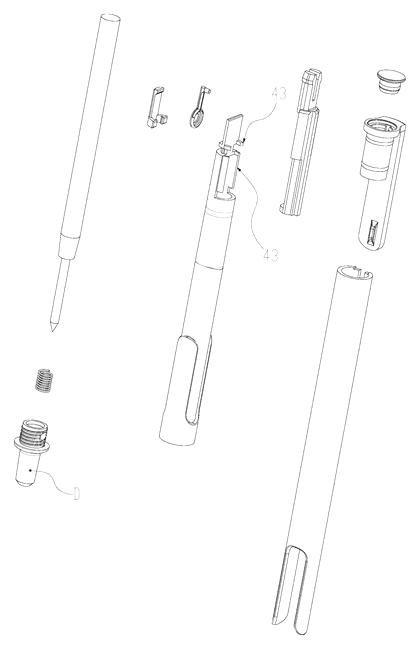

The patent shows three versions (figures 1-5, 6-8 and 9-11) with different track and boss details; the third adds a helper slope on the tip-out boss.

Applications

Offices and meetings

A silent pen with no button to fidget with suits boardrooms, libraries and shared offices where click pens annoy.

Premium and gift pens

Metal or lacquered barrels without a push button look cleaner; the slide action itself becomes a talking point in gift boxes.

Corporate and event merchandise

Promotional pens are bought by the thousand; a distinctive action helps a brand’s pen get kept instead of thrown away.

Students and exam halls

Silent operation matters in exam rooms; gel refills give students the smooth line they prefer.

Medical and lab pocket pens

Pens carried in coat pockets are turned upside down constantly; a latch that holds its state avoids ink marks from tips that pop out on their own.

Where it is less suitable

• The cheapest stick pens - a cam module and spring add cost compared with a capped disposable pen.
• Very thick multi-color pens - the mechanism is designed around a single refill.
