Multifunctional Pet Backpack with Adjustable Ventilation and Secure Restraint

The problem

Many pet backpacks suffer from a binary trade-off in ventilation and security. Owners either keep the bag fully closed, which restricts airflow and causes anxiety for the animal, or they open large flaps, risking escape if the pet jumps or pushes against the zipper. Additionally, standard zippers can be manipulated by clever cats or dogs, and fixed-size openings do not accommodate different breed sizes, leading to either loose fits that allow paws to slip out or tight fits that cause discomfort. There is also a lack of integrated restraint systems, requiring separate leashes that tangle or fail to secure the animal within the carrier itself.

The solution

1. Backpack Body (1) forms the main chamber, featuring a specific internal layout for ventilation management.
2. Extension Holes (9): Four holes are located at the inner bottom end, allowing the pet’s legs to extend outward when the bag is worn or placed.
3. Velcro System (10): Strips are placed on the inner bottom and the inner side walls. A Soft Pad (11) can attach to either location.
   • Mode A (Ventilated): The pad attaches to the side Velcro, leaving the bottom holes open for leg extension.
   • Mode B (Enclosed): The pad attaches to the bottom Velcro, covering the holes for full containment.

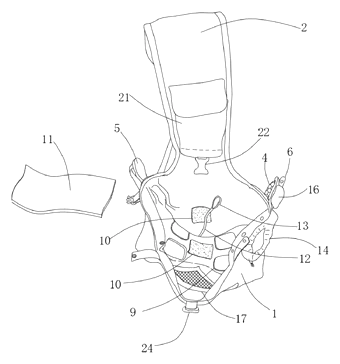

4. Head Extension Opening: Located on one side of the body, this opening is fitted with an Elastic Cord Lock (14). The lock mechanism is positioned such that it is difficult for the pet to push open from the inside, allowing owners to adjust the opening size for different head diameters.
5. Internal Tether: A Nylon Rope (12) is anchored at the corner of the side and bottom interior, ending in a Loop Buckle (13) that clips onto the pet’s collar.

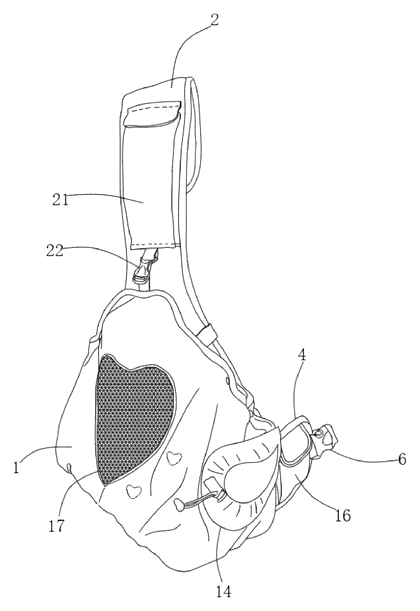

6. Visibility and Airflow: The front face features a Heart-Shaped Opening covered with Breathable Gauze (17), providing light and air exchange.

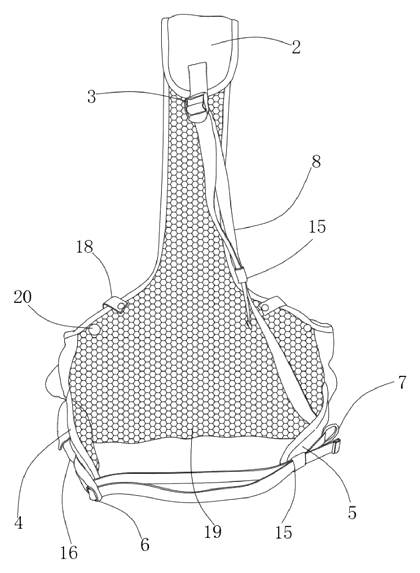

7. Carrying Structure: Includes an integrated Single Shoulder Strap (2), Waist Belts (4, 5), and connecting Rope Straps (8) with Buckles (3, 6) and Rubber Sleeves (15) for load distribution and stability.

Who it is for

• Pet Travel Brands: Companies looking for differentiated features in their carrier lines, specifically targeting anxious pets or those prone to escaping.
• Veterinary Clinics & Groomers: Professionals who need a secure, ventilated way to transport small animals between rooms or vehicles without complex restraints.
• Amazon Sellers: Sellers seeking a product with clear visual selling points (the heart window, the modular pad) that stands out in crowded search results.
• Outdoor Enthusiasts: Hikers or cyclists who carry small pets and need quick adjustments to ventilation based on weather or activity level.

How it works

The main parts

Operating Steps

1. Placement: The pet enters the main compartment through the top or side opening.
2. Restraint: The owner clips the internal Loop Buckle (13) onto the pet’s collar. This prevents the animal from jumping out even if openings are adjusted.
3. Ventilation Adjustment:
   • To allow movement: Attach the Soft Pad (11) to the Side Velcro (10). This leaves the Extension Holes (9) uncovered so the pet can rest its paws outside the bag.
   • To enclose: Detach the pad from the side and stick it to the Bottom Velcro (10). This covers the holes, creating a sealed environment.
4. Head Access: If the pet needs fresh air or visibility, open the Head Extension Opening. Use the Elastic Cord Lock (14) to tighten the rim around the pet’s neck/head. The lock design ensures the pet cannot push it open from inside.
5. Carrying: Adjust the Waist Belts (4, 5) and Shoulder Strap (2). Use the Fastening Straps (18) on the back to secure any loose ends or additional layers.

Applications

Urban Commuting

Owners taking subways or buses need compact, secure carriers. The cord-locked head opening allows the cat to peek out and breathe fresh air without the risk of slipping out, while the internal tether adds a second layer of safety against sudden movements in crowded spaces.

Veterinary Visits

Animals are often stressed at clinics. The heart-shaped mesh window lets the pet see its owner, reducing anxiety. The ability to quickly switch the soft pad to cover the bottom holes ensures hygiene and containment when moving from the waiting room to the exam table.

Outdoor Hiking

For trail use, ventilation is critical to prevent overheating. The modular pad system allows hikers to expose the pet’s legs for cooling and balance while walking, then instantly seal the bag if weather turns cold or if passing through areas where the pet must remain contained.

Small Dog Transport

Small dogs often struggle in rigid crates. The flexible backpack structure, combined with the adjustable head opening, accommodates various neck sizes. The waist belts distribute weight evenly, making long carries comfortable for the owner while keeping the dog stable and visible.

Where it is less suitable

• Large Dogs: The structural integrity and strap configuration are designed for small pets; larger animals would exceed the load capacity and comfort limits.
• Extreme Cold Weather: While the pad covers holes, the mesh windows and potential gaps at the cord lock may not provide sufficient insulation for freezing temperatures compared to hard-shell insulated carriers.
• Highly Aggressive Animals: The fabric construction and Velcro closures may not withstand heavy scratching or biting forces from aggressive pets; metal cages are preferred for such cases.
